All products

Extension Tubing for Cassette small
• Application: Excellent acid resistance at high temperatures
Features:
• Low gas permeability
• Resistant to solvents and corrosives at high temperatures
• Material: Fluorocarbon rubber, thermoformed Viton® B (67% fluorinated); opaque black
• Complies with the standards: GLP conform
• Temperature range: -30 to +205 °C
• Sterilization: Sterilization is not recommended
• Restriction: Limited performance life

The high performance Findenser™ Mini is for syntheses under reflux with solvent voluments up to 125 ml.
It can be secured with standard laboratory clamps or with the Findenser™ attachment kit (sold separately).
Save water, space and costs with Findenser™ Mini!

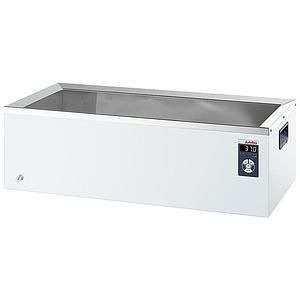

The Open Heating Bath Circulators of the new CORIO series feature highquality bath tanks made of stainless steel.

Your advantages

• Integrated drain screw
• Models for internal applications
• Bright, white, easy to read display
• Very quiet
• USB connection
• High-quality bath tanks made of stainless steel
• Integrated drain screw (except B5)

The high performance Findenser™ Mini is for syntheses under reflux with solvent voluments up to 125 ml.
It can be secured with standard laboratory clamps or with the Findenser™ attachment kit (sold separately).
Save water, space and costs with Findenser™ Mini!

The Open Heating Bath Circulators of the new CORIO series feature highquality bath tanks made of stainless steel.

Your advantages

• Integrated drain screw
• Models for internal applications
• Bright, white, easy to read display
• Very quiet
• USB connection
• High-quality bath tanks made of stainless steel
• Integrated drain screw (except B5)

The muffle furnaces L 3/11 - LT 60/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability.

Standard Equipment
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type S (1200 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• With flap door (L)
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Controller with touch operation B510 (5 programs with each 4 segments)
• Solid state relays provide for lownoise operation

Option
• Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

Tray with fixed clamps EX-6000 To load 2 x 6000 ml Erlenmeyer flasks

For Single- and Multi-Channel use (not suitable with cassette small)
• Application: Excellent acid resistance at high temperatures
Features:
• Low gas permeability
• Resistant to solvents and corrosives at high temperatures
• Material: Fluorocarbon rubber, thermoformed Viton® B (67% fluorinated); opaque black
• Complies with the standards: GLP conform
• Temperature range: -30 to +205 °C
• Sterilization: Sterilization is not recommended
• Restriction: Limited performance life

• Made of ceramic
• Dimensions 110 x 75 x 5 mm
• For rectangular saggar (699000279)

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Compatible adapters and other accessories:
• Bucket 1x750ml D99mm FB x2 V1 (30602502)*All racks are used with bucket 30602502 only; Lid Assembly for Bucket 30602502 PC 2x (30553122); O-Ring for bucket 30602502 NBR 10x (30553123); Rack 1x500ml D96mm FA x2 (30553124); Rack 1x250ml D62mm FB x2 V1 (30553125); Rack 1x175/225ml D61mm FA x2 (30553126); Rack 3x100ml D41mm RB x2 (30553127); Rack 5x50ml D29mm FA x2 (30553128); Rack 5x50ml D29mm FAw/R x2 (30553129); Rack 5x50ml D29mm FAw/R x2 (30553130); Rack 7x50ml D29mm RB x2 (30553131); Rack 8x30ml D26mm RB x2 (30553132); Rack 14x15ml D17mm FA x2 (30553133); Rack 17x15ml D17mm FA x2 (30553134); Rack 18x15ml D17mm RB x2 (30553135); Rack 21x10ml D16mm RB x2 (30553136); Rack 32x7ml D13mm RB x2 (30553138); Rack 27x1.8/7ml D13mm Vac/Sar x2 (30553139); Rack 18x4/10ml D16mm Vac/Sar x2 (30553140); Rack 38x1.1/1.4ml D8mm Sar x2 (30559377); Bucket MTP x2 V1 (30553104); Holder removing aid for Bucket (30553105); Lid Assembly for bucket 30553104 PC x2 (30553117); O-Ring for bucket 30553104 SIL x2 (30553118); Bucket MTP x2 V2 (30553119)

The MD 1 diaphragm pump is an excellent choice for oil-free evacuation and pumping of non-corrosive gases down to 1.5 mbar ultimate vacuum. The three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps. The MD 1 is an ultra-low vibration pump with very long diaphragm lilfetime and stable ultimate vacuum documented with years of testing. With a flow path consisting of aluminum and selected plastics (diaphragms and valves made of PTFE/FKM and FKM, respectively) the pumps are suitable for a wide range of applications with non-corrosive gases.

Performance features
• contamination-free pumping and evacuation
• high flow rate even near ultimate vacuum
• excellent ultimate vacuum
• whisper quiet and ultra-low vibration
• proven long diaphragm life, maintenance-free drive system

Replace oil baths and jacket heaters in your lab and reduce the risk of fire. Heat-On blocks are by far the safest, fastest and most efficient method for heating and mixing solutions in round bottom flasks from 10 ml to 5 l.
• Highest Level of Safety
Increased occupational safety and fire protection: The elimination of oil baths prevents accidents, fires and contamination. The unique design prevents glass breakage and thus minimizes the risk of possible cutting injuries and leaking liquids. The high temperature accuracy offers maximum safety for applications up to 260 °C.
• Superior Ease of Use
The temperature can be measured conveniently and precisely in the medium or directly at the reaction attachment. No oil is required as a heat conductor, as the attachments snugly enclose the flasks. The cleaning effort is minimized. The PTFE coating offers the highest resistance to chemicals and correspondingly many years of use.
• Lasting Reduction of Cost of Ownership
The simplified handling minimizes process times and increases sample throughput: 150 ml of water are brought to the boil in less than 11 minutes. In addition, the 66 % faster heating times compared to conventional oil baths save on energy costs.

Advanced control technology and a small bath fluid reservoir enable highly dynamic temperature control systems to achieve rapid heat-up and cool-down. This gives you the ability to handle difficult temperature challenges quickly.
The PRESTO® systems are designed for precise temperature control as well as rapid temperature changes, making them ideal for reactor vessels, material stress tests, or temperature simulations. These instruments cover a working temperature of -92 to +250 °C with high cooling and heating capacity.
• USB connection
• For highly precise, external temperature applications
• Rapid heating and cooling
• Wide working temperature ranges without changing fluids
• Highest performance with small footprint
• Space-saving design optimizes space utilization in your lab
• Ethernet interface
• SD-Card slot
• RS232 / RS485 (optional) / Profibus DP (optional)
• Connections for alarm-output, Pt100 external sensor and standby-input
• Removable ventilation grid
• Highly precise ICC cascade temperature control
• Electronic level indication
• Integrated programmer
• Unsurpassed power and efficiency
• Space optimized design creates more room directly next to the units
• External Pt100 sensor connection

This Heat-On insert is suitable for heating 10 ml round bottom flasks.
For optimal use it is recommended that you buy the Multi-Well holder together with safety lifting handles.
The maximum temperature for continuous use is 260 °C. In order to measure this precisely with a temperature sensor, a small hole is provided on one side of the Heat-On Block.

This Heat-On insert is suitable for heating 25 ml round bottom flasks.
For optimal use it is recommended that you buy the Multi-Well holder together with safety lifting handles.
The maximum temperature for continuous use is 260 °C. In order to measure this precisely with a temperature sensor, a small hole is provided on one side of the Heat-On Block.

For Single- and Multi-Channel use (not suitable with cassette small)
• Application: Excellent acid resistance at high temperatures
Features:
• Low gas permeability
• Resistant to solvents and corrosives at high temperatures
• Material: Fluorocarbon rubber, thermoformed Viton® B (67% fluorinated); opaque black
• Complies with the standards: GLP conform
• Temperature range: -30 to +205 °C
• Sterilization: Sterilization is not recommended
• Restriction: Limited performance life

This Heat-On insert is suitable for heating 50 ml round bottom flasks.
For optimal use it is recommended that you buy the Multi-Well holder together with safety lifting handles.
The maximum temperature for continuous use is 260 °C. In order to measure this precisely with a temperature sensor, a small hole is provided on one side of the Heat-On Block.

This Heat-On insert is suitable for heating 100 ml round bottom flasks.
For optimal use it is recommended that you buy the Multi-Well holder together with safety lifting handles.
The maximum temperature for continuous use is 260 °C. In order to measure this precisely with a temperature sensor, a small hole is provided on one side of the Heat-On Block.

The muffle furnaces L 3/11 - LT 60/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability.

Standard Equipment
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type S (1200 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• With flap door (L)
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Controller with touch operation C550
• Solid state relays provide for lownoise operation

Option
• Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

Tray with fixed clamps F-25 To load 153 Erlenmeyer flasks with a volume of 25 ml
