The devices of the Hei-TORQUE Precision line are Heidolph high performance overhead stirrers.

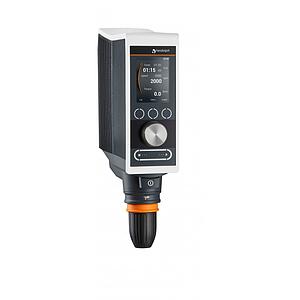

The Hei-TORQUE Precision 200 laboratory stirrer is ideal for the powerful stirring of viscosities up to 100,000 mPas or volumes up to 50 liters (H2O). It has a wide speed range (10 - 2,000 rpm) and a maximum torque of 200 Ncm.
In addition, the Hei-TORQUE Precision 200 offers, above all, the possibility of ramp programming, process monitoring (including timer function, torque trend display as a value), as well as the necessary equipment for documenting your application parameters. For this it is equipped with two interfaces - USB and RS232 - which give you the greatest flexibility to connect the device to a PC, a programmable logic controller (PLC) or an automation system such as e.g. LabManager. The scope of delivery includes the free Hei-Control software for remote control of up to 4 devices via PC.
The laboratory stirrer Hei-TORQUE Value 200 performs every stirring task with minimal noise thanks to the latest engine technology. The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Precision 200 has a quick -action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools for the best stirring results.
Technical Data
Number of speed gears: 1
Rotation speed range: 10 – 2,000 rpm
Rotation speed indicator: digital
color 3.2"
Speed control: electronic
Max. torque: 200 Ncm
Torque indicator: precise value
Overheat protection: automatic cut-out
Viscosity max.: 100,000 mPa s
Stirring cap. (H2O), max.: 50 l
Throught-shaft design: ✔
Shaft diameter, max.: 10.5 mm
Counter/ Timer: ✔
Analog / digital interface: USB and RS 232
Power rating motor input: 120 W
Protection class DIN EN 60529: IP 54
