Stakpure standalone & twin water softening systems

Double system, volume-controlled, for softening drinking water that is free of iron and manganese, in accordance with the Drinking Water Ordinance, fully automatic 5-stage central control valve type Fleck 9100 SXT with intelligent control electronics made of gunmetal/plastic with an adapter for the second pressure vessel. 2 pressure tanks made of corrosion-resistant GRP, including a high-quality cation exchanger. 1 brine tank with a sieve floor and float valve (safety valve).

Technical data

• Operating pressure: 3 to 6 bar
• Max. water temperature: 40°C
• Max. ambient temperature: 5 to 40°C
• E lectrical connection: 230 V 50 Hz
• Dimensions of housing: approx. W 350 x D 460 x H 1180 mm
• Water connection: R 1’

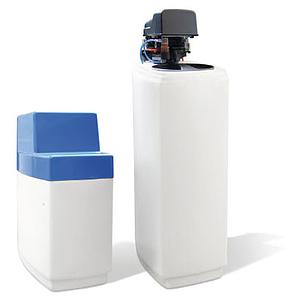

Double system, volume-controlled in compact design, for softening ironand manganese-free drinking water, in accordance with the Drinking Water Ordinance, fully automatic 5-stage central control valve type 9100 SE with intelligent control electronics made of gunmetal with adapter for the second pressure vessel. 2 pressure tanks made of corrosion-resistant GRP, including a high-quality cation exchanger. 1 cabinet brine tank with a sieve floor and a float valve (safety valve).

Technical data

• Maximum flow rate: 1.9 m³/h at 1.6 bar pressure loss
• Resin quantity: 2 x 5 litres
• Salt consumption: approx. 1.2 kg/reg.
• Operating pressure: 3 to 6 bar
• Max. water temperature: 40°C
• Max. ambient temperature: 5 to 40°C
• Dimensions of housing: approx. W 585 x D 555 x H 622 mm
• Electrical connection: 230 V 50 Hz
• Water connection: R 1’
• waste water connection R ½’

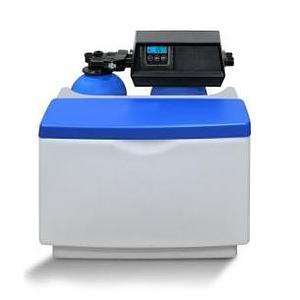

Completely automatic water softening unit with Mix Multi filter material, for softening of iron and manganic free drinking water and removal of organics, for bad water qualities and well water application that produces softened water with a residual hardness of 0.1° dH by means of the neutral exchange process with strong acid cation exchanger. Common salt is used for regeneration. Regeneration is carried out volume-dependently. Manual initiation of regeneration is also possible.
Scope of delivery:
• Fiberglass pressure tank and filling with cation exchanger
• Central control valve with 5 step regeneration program
• Container for dissolving salt
• Pre-assembled system ready for connection
Technical data:
• Capacity: (at 10°dH - tap water) 32 m³x°dH
• Flow rate: 0,32 m³/h
• Resin volume: 8 liter
• Capacity of salt container: 25 kg
• Salt consumption: 1,92 kg/reg.
• Water consumption: 0,08 m³/reg.
• Operating pressure: 2 to 6 bar
• Max. water temperature: 30°C
• Max. ambient temperature: 5 to 40°C
• Power supply: 220 V 50 Hz
• Dimensions: W 310 x D 430 x H 660 mm
• Piping connections: R1“

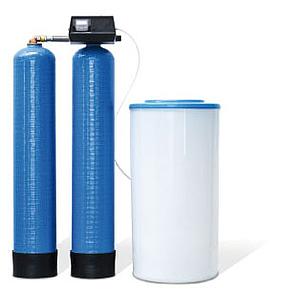

A twin system, volume-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve with intelligent control electronics, made of red brass. 2 pressurised tanks made of non-corroding GFP, including top quality cation exchanger. 1 salt water tank with sieve bottom and float valve.

A twin system, volume-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve with intelligent control electronics, made of red brass. 2 pressurised tanks made of non-corroding GFP, including top quality cation exchanger. 1 salt water tank with sieve bottom and float valve.

A twin system, volume-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve with intelligent control electronics, made of red brass. 2 pressurised tanks made of non-corroding GFP, including top quality cation exchanger. 1 salt water tank with sieve bottom and float valve.

A twin system, volume-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve with intelligent control electronics, made of red brass. 2 pressurised tanks made of non-corroding GFP, including top quality cation exchanger. 1 salt water tank with sieve bottom and float valve.

A twin system, volume-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve with intelligent control electronics, made of red brass. 2 pressurised tanks made of non-corroding GFP, including top quality cation exchanger. 1 salt water tank with sieve bottom and float valve.

A twin system, volume-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve with intelligent control electronics, made of red brass. 2 pressurised tanks made of non-corroding GFP, including top quality cation exchanger. 1 salt water tank with sieve bottom and float valve.

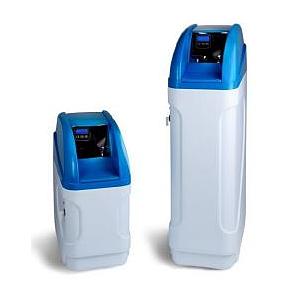

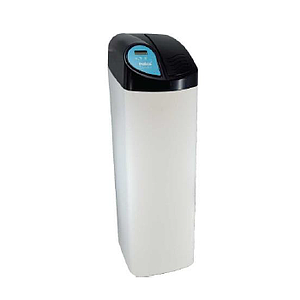

The System is either volume or time-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve and microprocessor with integrated blending valve and water meter. Pressurised tank made of non-corroding GFP, including top-quality cation exchanger, built into cabinet container with float valve.

The System is either volume or time-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve and microprocessor with integrated blending valve and water meter. Pressurised tank made of non-corroding GFP, including top-quality cation exchanger, built into cabinet container with float valve.

The System is either volume or time-controlled, for softening iron and manganese-free drinking water, in compliance with the German Drinking Water Ordinance, fully automatic with 5-stage central control valve and microprocessor with integrated blending valve and water meter. Pressurised tank made of non-corroding GFP, including top-quality cation exchanger, built into cabinet container with float valve.
