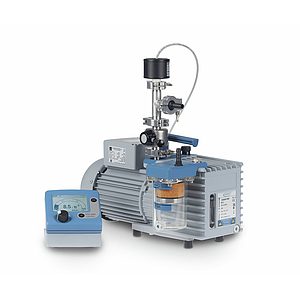

Vacuubrand Rotary vane pump package RZ 6, with oil mist filter, butterfly valve VS 16 and vacuum gauge DCP 3000 +VSP 3000
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. Various packages including pump, oil mist filter, etc. are available. Rotary vane pumps are used when an ultimate vacuum between a few mbar and down to 10-3 mbar has to be attained. Typical applications are degassing, lyophilization, fine vacuum distillation and drying chambers.

Product features:

• high flow rates even at vacuum levels approaching ultimate vacuum
• high water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
• vacuum-tight at switch-off; external anti-suckback valve not needed
• large oil volume: Long intervals between oil changes
• ease of maintenance due to telescopic design

Technical data

• Max. pumping speed 50 Hz: 5.7 m3/h
• Ultimate vacuum: 2 x 10-3 mbar
• Number of stages: 2
• Vacuum controller: VACUU•VIEW extended
• Water vapor tolerance with gas ballast: 40 mbar
• Max. back pressure (abs.): 1.1 bar
• Inlet connection: Small flange KF DN 16 / hose nozzle DN 10 mm
• Outlet connection: Hose nozzle DN 8-10 mm
• Dimension (LxBxH (mm): 420x230x240
• Weight: 17.8 kg
• Items supplied: Pump oil filled and completely mounted, ready for use, with manual, with oil mist filter FO, valve VS 16 and vacuum gauge VACUU•VIEW extended.
