Laboratory washer

Laboratory dishwasher with DI water connection
• Construction type: Freestanding, can be builtunder, slimline
• Control panel colour: Black
• Casing: Stainless steel
• In-door salt container
• Number of wash levels: 2
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Basic
• Max. delay start in h: 24
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Emissions data
• Heat dissipation into the room in MJ/h 5,40
Features
• 1 door dispenser for powder cleaning agent
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory dishwasher with feed pump for DI water
• Construction type: Freestanding, can be builtunder, slimline
• Control panel colour: Black
• Casing: Stainless steel
• In-door salt container
• Number of wash levels: 2
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Basic
• Max. delay start in h: 24
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Required flow pressure in kPa: 200-1000
Emissions data
• Heat dissipation into the room in MJ/h 5,40
Features
• 1 door dispenser for powder cleaning agent
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory dishwasher with AD water connection, liquid dispensing & EcoDry function
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Emissions data
• Heat dissipation into the room in MJ/h: 5,40
Features
• Spray pressure and spray arm monitoring
• EcoDry - Convenient drying support
• 1 dispenser pump for liquid cleaning agent
• 1 dispenser pump for neutralising agent
• DS5 Flex suction lance
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory washer with glass door, with liquid dispensing, EcoDry function and monitoring package
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel, glass door
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Emissions data
• Heat dissipation into the room in MJ/h: 5,40
Features
• Spray pressure and spray arm monitoring
• EcoDry - Convenient drying support
• 1 dispenser pump for liquid cleaning agent
• 1 dispenser pump for neutralising agent
• DS5 Flex suction lance
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

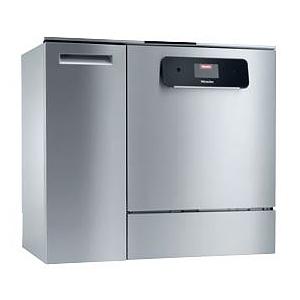

Laboratory dishwasher with liquid dispensing, DryPlus, conductivity monitoring and monitoring package
• Construction type: Freestanding, can be builtunder, wide, with lid
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H14, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: 99,99
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• 1 dispenser pump for neutralising agent
• Convenient suction lance DC5
• Additional integrated dispensing pump 5–10 l (optional)
• Suction lance for media canisters 10–20 l (optional)
• Spray pressure and spray arm monitoring
• EcoDry - Convenient drying support
• Setting options for process chemicals (3 x 5 l / 2 x 10 l)
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

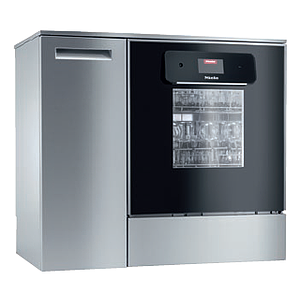

Laboratory washer with glass door, with liquid dispensing, DryPlus, conductivity monitoring and monitoring package
• Construction type: Freestanding, can be builtunder, wide, with stainless steel lid, glass door
• Number of wash levels: 2
• Salt container in base of wash cabinet
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H14, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: 99,99
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• 1 dispenser pump for neutralising agent
• Convenient suction lance DC5
• Additional integrated dispensing pump 5–10 l (optional)
• Suction lance for media canisters 10–20 l (optional)
• Spray pressure and spray arm monitoring
• EcoDry - Convenient drying support
• Setting options for process chemicals (3 x 5 l / 2 x 10 l)
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory dishwasher with liquid dispensing & hot air drying DryPlus
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H13, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: >99,95
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• Suction lance for media canisters 10–20 l (optional)
• DS5 Flex suction lance
• Spray pressure monitoring
• DryPlus - Efficient hot air drying
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory dishwasher with liquid dispensing, DryPlus hot air drying and monitoring package
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H13, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: >99,95
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• Suction lance for media canisters 10–20 l (optional)
• DS5 Flex suction lance
• Spray pressure and spray arm monitoring
• DryPlus - Efficient hot air drying
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory dishwasher with liquid dispensing, DryPlus hot air drying, oil seals and monitoring
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H13, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: >99,95
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• Suction lance for media canisters 10–20 l (optional)
• DS5 Flex suction lance
• Spray pressure and spray arm monitoring
• DryPlus - Efficient hot air drying
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

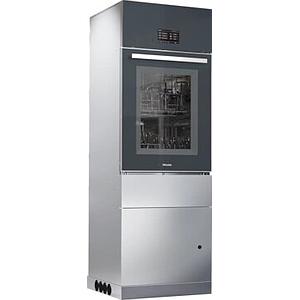

SlimLine laboratory glasswasher, with electric heating, hot air drying, drain pump, capacitor
• Construction type: Freestanding, 1 glazed hinged door
• Front/back/side panels: Stainless Steel
• Number of wash levels: 3
• Loading and unloading with telescopic runners
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control
• Control type: TouchControl, full-touch colour display
• Freely programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 10,10
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 100-600
Drying unit
• Air throughput in m³/h: 130
• HEPA filter class H14, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,99
Emissions data
• Heat dissipation into the room in MJ/h: 0,80
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 2 additional integrated dispenser pumps
• EasyLoad
• Setting options for process chemicals (3 x 5 l)
• Wash cabinet made of high-quality stainless steel (1.4404/316L), electropolished
• Variable-speed pump
• SlimLine mobile plinth
• Chamber lighting
Connection options
• Ethernet, USB interface
• Peak-load negotiation / energy management

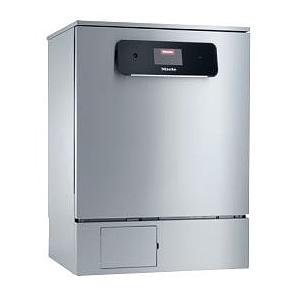

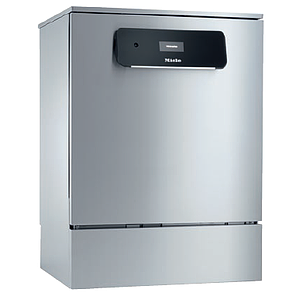

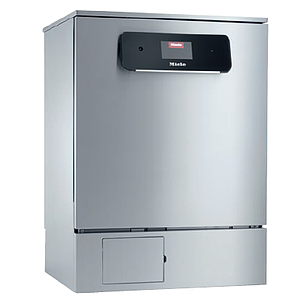

SlimLine laboratory glasswasher, with electric heating, hot air drying, drain pump, capacitor, water softener
• Construction type: Freestanding, 1 glazed hinged door
• Front/back/side panels: Stainless Steel
• Number of wash levels: 3
• Loading and unloading with telescopic runners
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control
• Control type: TouchControl, full-touch colour display
• Freely programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 10,10
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 100-600
Drying unit
• Air throughput in m³/h: 130
• HEPA filter class H14, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,99
Emissions data
• Heat dissipation into the room in MJ/h: 0,80
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 2 additional integrated dispenser pumps
• EasyLoad
• Setting options for process chemicals (3 x 5 l)
• Wash cabinet made of high-quality stainless steel (1.4404/316L), electropolished
• Variable-speed pump
• SlimLine mobile plinth
• Chamber lighting
Connection options
• Ethernet, USB interface
• Peak-load negotiation / energy management

SlimLine laboratory glasswasher, with electric heating, hot air drying, drain pump, capacitor, water softener, DI pump
• Construction type: Freestanding, 1 glazed hinged door
• Front/back/side panels: Stainless Steel
• Number of wash levels: 3
• Loading and unloading with telescopic runners
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control
• Control type: TouchControl, full-touch colour display
• Freely programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 10,10
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• Required flow pressure in kPa: 100-600
Drying unit
• Air throughput in m³/h: 130
• HEPA filter class H14, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,99
Emissions data
• Heat dissipation into the room in MJ/h: 0,80
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 2 additional integrated dispenser pumps
• EasyLoad
• Setting options for process chemicals (3 x 5 l)
• Wash cabinet made of high-quality stainless steel (1.4404/316L), electropolished
• Variable-speed pump
• SlimLine mobile plinth
• Chamber lighting
Connection options
• Ethernet, USB interface
• Peak-load negotiation / energy management

SlimLine laboratory glasswasher, with electric heating, hot air drying, drain pump, capacitor, water softener, container
• Construction type: Freestanding, 1 glazed hinged door
• Front/back/side panels: Stainless Steel
• Number of wash levels: 3
• Loading and unloading with telescopic runners
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control
• Control type: TouchControl, full-touch colour display
• Freely programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 10,10
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 100-600
Drying unit
• Air throughput in m³/h: 130
• HEPA filter class H14, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,99
Emissions data
• Heat dissipation into the room in MJ/h: 0,80
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 2 additional integrated dispenser pumps
• EasyLoad
• Setting options for process chemicals (3 x 5 l)
• Wash cabinet made of high-quality stainless steel (1.4404/316L), electropolished
• Variable-speed pump
• SlimLine mobile plinth
• Chamber lighting
Connection options
• Ethernet, USB interface
• Peak-load negotiation / energy management

SlimLine laboratory glasswasher, with electric heating, hot air drying, drain pump, capacitor, water softener, container, printer
• Construction type: Freestanding, 1 glazed hinged door
• Front/back/side panels: Stainless Steel
• Number of wash levels: 3
• Loading and unloading with telescopic runners
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control
• Control type: TouchControl, full-touch colour display
• Freely programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 10,10
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 100-600
Drying unit
• Air throughput in m³/h: 130
• HEPA filter class H14, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,99
Emissions data
• Heat dissipation into the room in MJ/h: 0,80
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 2 additional integrated dispenser pumps
• EasyLoad
• Setting options for process chemicals (3 x 5 l)
• Wash cabinet made of high-quality stainless steel (1.4404/316L), electropolished
• Variable-speed pump
• SlimLine mobile plinth
• Chamber lighting
Connection options
• Ethernet, USB interface
• Peak-load negotiation / energy management

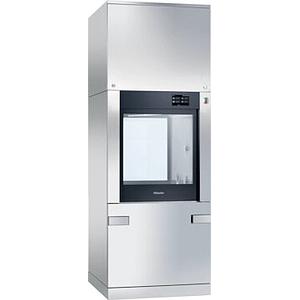

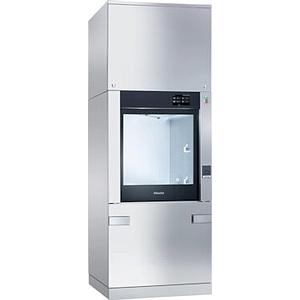

Laboratory washer – single door, 900 mm wide, 351 l usable capacity
• Construction type: Freestanding, 1 glass vertical sliding door
• Front/back/side panels: Stainless Steel
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type PST 20, full-touch colour display
• Programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 20,00
Water connection/drainage
• Cold water [number]: 2
• Hot water [number]: 1
• DI water [number]: 2
• Required flow pressure in kPa: 200-1000
Compressed air connection
• Compressed air connection, technical [number]: 1
Drying unit
• Air throughput in m³/h: 250
• HEPA filter class H13, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,95
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 4 additional integrated dispenser pumps
• Variable-speed pump
• EasyLoad
• Spray arm monitoring
• Setting options for process chemicals (4 x 5 l or 2 x 5 l + 1 x 10 l)
• Wash cabinet made from high-quality stainless steel (1.4404/316L)
• Multi-coloured chamber lighting
Connection options
• Ethernet interface, External dispensing modules, USB interface, Central dispensing, Peak-load negotiation / energy management

Laboratory washer – single door with combi tank, 900 mm wide, 351 l usable capacity
• Construction type: Freestanding, 1 glass vertical sliding door
• Front/back/side panels: Stainless Steel
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type PST 20, full-touch colour display
• Programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 20,00
Water connection/drainage
• Cold water [number]: 2
• Hot water [number]: 1
• DI water [number]: 2
• Required flow pressure in kPa: 200-1000
Compressed air connection
• Compressed air connection, technical [number]: 1
Drying unit
• Air throughput in m³/h: 250
• HEPA filter class H13, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,95
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 4 additional integrated dispenser pumps
• Variable-speed pump
• EasyLoad
• Spray arm monitoring
• Setting options for process chemicals (4 x 5 l or 2 x 5 l + 1 x 10 l)
• Wash cabinet made from high-quality stainless steel (1.4404/316L)
• Multi-coloured chamber lighting
Connection options
• Ethernet interface, External dispensing modules, USB interface, Central dispensing, Peak-load negotiation / energy management

Lab washer, steam/electrically heated – single door, 900 mm wide, 351 l usable capacity
• Construction type: Freestanding, 1 glass vertical sliding door
• Front/back/side panels: Stainless Steel
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type PST 20, full-touch colour display
• Programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 20,00
Water connection/drainage
• Cold water [number]: 2
• Hot water [number]: 1
• DI water [number]: 2
• Required flow pressure in kPa: 200-1000
Compressed air connection
• Compressed air connection, technical [number]: 1
Drying unit
• Air throughput in m³/h: 250
• HEPA filter class H13, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,95
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 4 additional integrated dispenser pumps
• Variable-speed pump
• EasyLoad
• Spray arm monitoring
• Setting options for process chemicals (4 x 5 l or 2 x 5 l + 1 x 10 l)
• Wash cabinet made from high-quality stainless steel (1.4404/316L)
• Multi-coloured chamber lighting
Connection options
• Ethernet interface, External dispensing modules, USB interface, Central dispensing, Peak-load negotiation / energy management

Lab washer, steam/electrically heated – single door with combi tank, 900 mm wide, 351 l usable capacity
• Construction type: Freestanding, 1 glass vertical sliding door
• Front/back/side panels: Stainless Steel
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type PST 20, full-touch colour display
• Programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 20,00
Water connection/drainage
• Cold water [number]: 2
• Hot water [number]: 1
• DI water [number]: 2
• Required flow pressure in kPa: 200-1000
Compressed air connection
• Compressed air connection, technical [number]: 1
Drying unit
• Air throughput in m³/h: 250
• HEPA filter class H13, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,95
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 4 additional integrated dispenser pumps
• Variable-speed pump
• EasyLoad
• Spray arm monitoring
• Setting options for process chemicals (4 x 5 l or 2 x 5 l + 1 x 10 l)
• Wash cabinet made from high-quality stainless steel (1.4404/316L)
• Multi-coloured chamber lighting
Connection options
• Ethernet interface, External dispensing modules, USB interface, Central dispensing, Peak-load negotiation / energy management

Laboratory washer - double door, 900 mm wide, 351 l l usable capacity
• Construction type: Freestanding, passthrough, 2 glass sliding doors
• Front/back/side panels: Stainless Steel
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type PST 20, full-touch colour display
• Programmable
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 20,00
Water connection/drainage
• Cold water [number]: 2
• Hot water [number]: 1
• DI water [number]: 2
• Required flow pressure in kPa: 200-1000
Compressed air connection
• Compressed air connection, technical [number]: 1
Drying unit
• Air throughput in m³/h: 250
• HEPA filter class H13, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,95
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 4 additional integrated dispenser pumps
• Variable-speed pump
• EasyLoad
• Spray arm monitoring
• Setting options for process chemicals (4 x 5 l or 2 x 5 l + 1 x 10 l)
• Wash cabinet made from high-quality stainless steel (1.4404/316L)
• Multi-coloured chamber lighting
Connection options
• Ethernet interface, External dispensing modules, USB interface, Central dispensing, Peak-load negotiation / energy management

Laboratory washer – double door with combi tank, 900 mm wide, 351 l usable capacity
• Construction type: Freestanding, passthrough, 2 glass sliding doors
• Front/back/side panels: Stainless Steel
• Electric door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type PST 20, full-touch colour display
• Selectable display languages
Standard electrical connection
• Total rated load in kW: 20,00
Water connection/drainage
• Cold water [number]: 2
• Hot water [number]: 1
• DI water [number]: 2
• Required flow pressure in kPa: 200-1000
Compressed air connection
• Compressed air connection, technical [number]: 1
Drying unit
• Air throughput in m³/h: 250
• HEPA filter class H13, HEPA filter filtration efficiency (DIN EN 1822) in %: 99,95
Features
• 2 integrated diaphragm dispenser pumps for liquid media
• 4 additional integrated dispenser pumps
• Variable-speed pump
• EasyLoad
• Spray arm monitoring
• Setting options for process chemicals (4 x 5 l or 2 x 5 l + 1 x 10 l)
• Wash cabinet made from high-quality stainless steel (1.4404/316L)
• Multi-coloured chamber lighting
Connection options
• Ethernet interface, External dispensing modules, USB interface, Central dispensing, Peak-load negotiation / energy management
