Hei‐PLATE Mix'n'Heat Core+ and Pt 1000 (V4A) + Pt 1000 clamping system

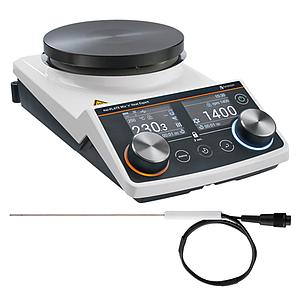

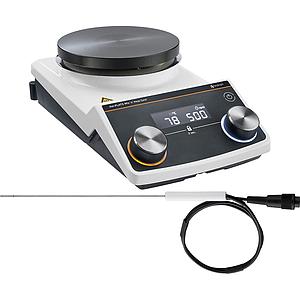

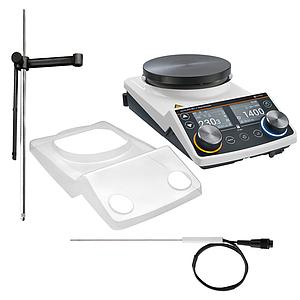

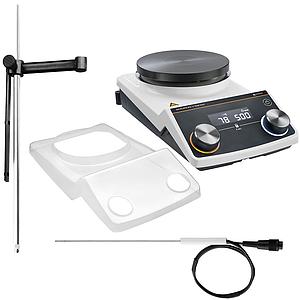

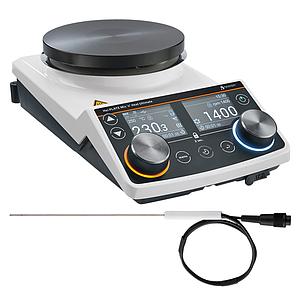

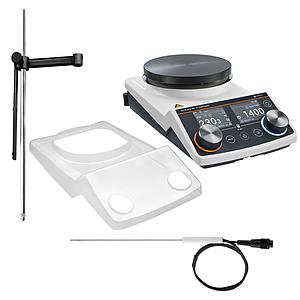

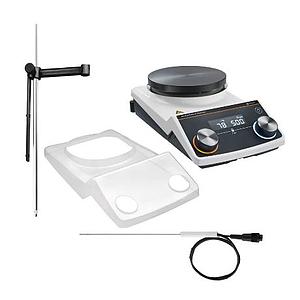

Includes: Magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ (145 mm diameter) - Fast and precise heating - Without overshoot - For sample-friendly work, Pt1000 temperature sensor for precise temperature regulation, Pt1000 holder with cable device for securely attaching the temperature sensor and silicone protective cover for a longer lasting protection of your magnetic stirrer.
The magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ offers you a digital display for setting your desired temperature to the degree. This precise temperature without overshooting is controlled by two selectable heating modes (FAST/PRECISE) and the optional external temperature sensor Pt1000.
It convinces with its robust design and its sophisticated functionalities, such as its key and knob illumination, which provides information about active functions at any time. The dynamic rotary knobs respond to turning speed - slow for precise adjustments, or fast for bigger jumps. The locking function protects against accidental changing of the values. This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures > 50 °C, protect against burns. A carrying aid on the underside ensures safe transport.
• Circular scratch-resistant, chemical-resistant mixing plate with Kera-Disk coating
• Plate diameter ø: 145 mm
• Temperature range: 20 – 300 °C
• Heating power: 800 W
• Rotation speed range: 100… 1400 rpm
• Accuracy temperature setting: ± 1 K
• Speed accuracy: ± 2 %
• Max. stirring capacity (H₂O): 20 l
• The appliance has a residual heat indication
• Maximum load: 25 kg
• Protection class IEC 60529: IP 42
• Also available with 135 mm plate on request
