Accurate dosing is particularly important in the pharmaceutical, cosmetic or food sector.

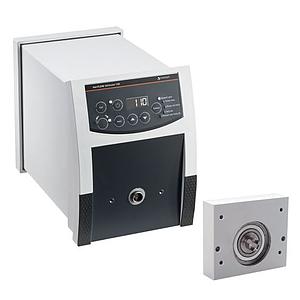

Comprehensible process conditions are a prerequisite for the safe conveyance of sensitive media. This is ensured by a control accuracy of ±0.5% and precise speed adjustment (5 — 120 rpm). In addition, an optional foot switch allows the pump to be operated in closed exhaust hoods. The parameters - speed, direction of rotation and on/off function - can be controlled externally either through the analog or digital interface. In this model, you can choose between a single-channel or multichannel pump head. Flow rates vary depending on the pump head: the single-channel head has a flow rate of 0.38 — 813 ml/min; for the multi-channel head 0.005 — 364 ml/min. Depending on the focus of the process, the following parameters can be set on the device: Speed, tubing diameter, flow rate display, metering volume, interval dosing and break times. The pump can be calibrated for optimum dosing results.
Other technical Data:
• Speed setting: digital
• Electronic speed control: digital
• Select direction of rotation: CW / CCW
• Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
• Safety feature: electronic current limiter and overheat protection
