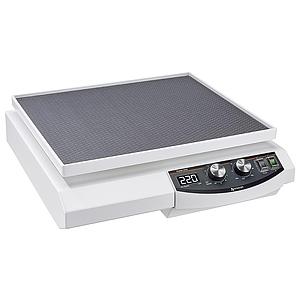

Heidolph Promax reciprocating platform shakers

• The resilient one with load capacities of 10 kg
• With a usable area of 390 x 340 mm, the large Promax is particularly suitable when the use of large or multiple vibrating funnels is required. In conjunction with the appropriate assembly parts, the device can be expanded by a second floor.
• This shaker has an integrated timer for up to 120 minutes. An acoustic warning signals the end of the set time and the shaking process is also stopped. A stroke of 20 mm combined with a speed of 20 — 400 rpm guarantees clean phase separation and efficient extraction results.
• Technical Data
• Motion: reciprocating
• Rotation speed range: 20 - 400 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 20 mm
• Timer: Yes
• Power input: 115 W
• Platform size: 390 x 340 mm
• Max. Load: 10 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 20

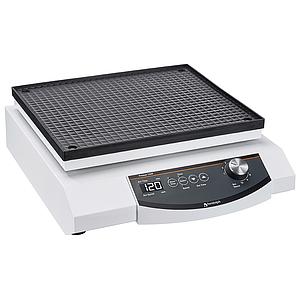

• The 1000 series reciprocating shaker can be easily integrated into the modular incubator system. This makes it possible to successfully run temperature controlled applications. The Promax 1020 can also be used to purify proteins at 4°C. With a platform size of 290 x 258 mm, there is enough space for the vessels used.
• With a stroke of 32 mm and a speed of 30 — 250 rpm, a proper separation of the samples is guaranteed. The integrated timer function enables unattended operation so that you can concentrate on other tasks without worries. After the set time has elapsed, the acoustic signal signals the end of the shaking process.
• Supplemented with the appropriate holder for separatory funnels can be securely attached to the Promax 1020.

Technical Data
• Motion: reciprocating
• Operating Mode: timer or continuous
• Orbit / Stroke: 32 mm
• Timer: Yes
• Power input: 50 W
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 40
