Binder MKF environmental simulation chambers

During the full modeling of environmental simulation tests, Binder MKF series test chambers are capable of performing tests according to DIN and IEC standards in a wide temperature and humidity range.

%

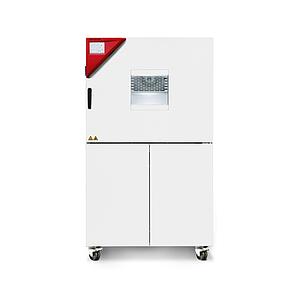

Binder MKF 56 dynamic climate chamber with humidity control
A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
%

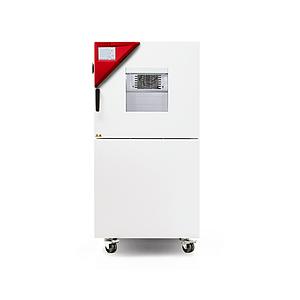

Binder MKF 115 dynamic climate chamber with humidity control
A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
%

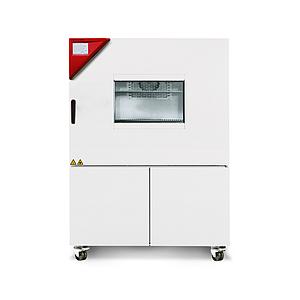

Binder MKF 240 dynamic climate chamber with humidity control
A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
%

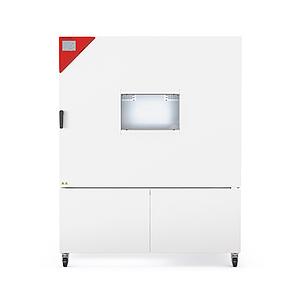

Binder MKF 720 dynamic climate chamber with humidity control
A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters (Models 115, 240, 720)
• 4 zero-voltage relay contacts
• 1 stainless steel rack
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Access port with silicone plug (Models 56, 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel (Models 115, 240, 720)
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank (Models 115, 240, 720)
• Complete safety connection kit for water supply and drainage, up to 1 m height
• Inner chamber made of stainless steel
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
%
Binder MKF 1020 dynamic climate chamber with humidity control
A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window

Main features

• Temperature range: -40 °C to +180 °C
• Humidity range: 10% to 98% RH
• Humidity regulation with capacitive humidity sensor and steam humidification
• APT.line™ preheating chamber technology
• Intuitive touchscreen controller with time-segment and real-time programming
• CFC-free refrigerant R-452A
• Integrated water-storage tank, 20 L
• 1 stainless steel rack
• 2 access ports with silicone plugs, 80 mm, left and right
• 4 zero-voltage relay contacts

Optional equipment

• APT-COM Multi Management Sofware – for managing, recording, and documenting unit parameters
• Racks – option of stainless steel racks, depending on test requirements
• Systems for water treatment and compressed air supply
• Services – wide range of services to ensure that the unit functions correctly
