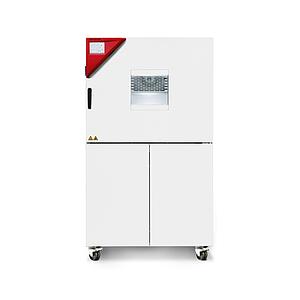

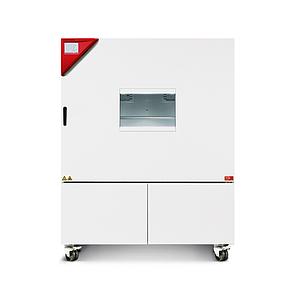

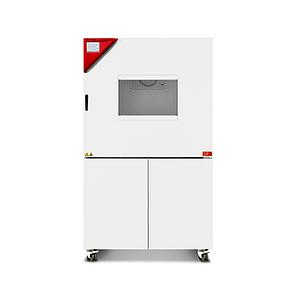

The BINDER MKFT series environmental simulation chamber for low temperature alternating climate profiles is the specialist for dynamic alternating climate change between -70 °C and 180 °C. Large performance reserves and rapid cooling make the MKFT environmental simulation chamber the high-end product for complex standards-based climate tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated water-storage tank, 20 liters
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• Alarm notification in the event of insufficient water in fresh water tank
• 1 stainless steel rack
• Complete safety connection kit for water supply and drainage, up to 1 m in height
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit
