The Binder KBF PRO 260 standard climate chamber with extended temperature and humidity range is an ideal choice for photostability testing in accordance with the ICH Q1B guideline. The chamber can be equipped with a special ICH light module that provides standardized UV and visible light (VIS) exposure. The system is designed to enable fast and reliable completion of the three-day photostability test with minimal thermal impact. The KBF PRO 260 ensures a precise and stable environment, guaranteeing the reproducibility of test results in various industrial and research applications.

Scope of delivery

Binder KBF PRO 260 Constant climate chamber with expanded temperature / humidity range

• Climate range: +10 °C to +50 °C and 10% to 80% RH
• Proven APT.line ™ preheating chamber technology
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with climate-neutral R-290 refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity regulation with capacitive humidity sensor and responsive steam humidification
• Robust housing design with HIT sandwich technology
• Stainless-steel inner chamber
• Inner doors made of metal oxide-coated safety glass
• Two racks made of stainless steel with telescopic rails
• Large access port with silicone plug
• Robust twin casters, with brakes at the front
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic edition

ICH light module without light dose control
The ICH light module is connected to the climate chamber via a data cable. This makes it possible to control the irradiation duration of the light cassettes individually with a time segment program via the program controller of the climate chamber.

Scope of delivery of the BINDER ICH light modules

• VIS light cassette with connection cable
• UVA light cassette with connection cable
• U-rails for mounting the light cassettes in the climate control cabinet
• Supply box with ballasts/power supply units
• Profile rails and bolts for attaching the supply box to the climate chamber
• Data cable
• Mains cable
• Operating instructions

The new BSC with Centurion Touchscreen controller is EN 12469-certified and now available in 200 mm (8"") opening, with standby height that easily activates standby mode.

Labculture® Plus G4 (LA2-E-EU G4) ergonomic work zone is comprised of bright illumination using industry-leading dimmable LED lamp combined with raised, durable, stainless-steel armrest and autoclavable, multi-piece work zone devised for optimum work comfort.

Product features:

Centurion Touchscreen Controller
• Intuitive, comprehensive, and easy-to-understand
• Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
• Defined details of alarm types with clear instructions for proper intervention
• Centered and angled down for easy reach & viewing
• Selectable Quickstart mode for fast operation

Dimmable LED
• Adjustable work zone brightness
• Ideal light intensity of 1000 lux
• Saves energy and optimizes work comfort

Ergonomic Features
• 200 mm (8"") sash opening
• Frameless, shatterproof, and UV-absorbing tempered glass
• Motorized window
• Aerosol tight window seal

Tiltable Sash
• For easy cleaning of the inner sash glass

USB Port and Remote Modbus
• USB port to access cabinet data log and BMS connectivity
• Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

Cabinet Construction
• E Series: - Tempered Glass Side walls - increases visibility and prevents the operator from experiencing a ""boxed-in"" feeling Multi-piece work tray, autoclavable.
• Tempered Glass Side walls - increases visibility and prevents the operator from experiencing a ""boxed-in"" feeling
• Multi-piece work tray, autoclavable

Green Product
• Equipped with energy-efficient Dual DC ECM that allows up to 70% energy savings vs AC motor
• Extremely low energy consumption
• Standby mode allows reduced power consumption

ULPA Filter
• 10x filtration efficiency compared to the HEPA filter
• Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
• Same 10 years filter life and replacement cost as HEPA filters

Isocide™ Antimicrobial Powder Coating
• Eliminates 99.9% of surface bacteria within 24 hours of exposure

Technical data:
• Average airflow velocity: inflow 0.45 m/s, downflow 0.32 m/s
• Usable work area: 0.76 m2

The Binder KBF 720 climate chamber, with its extended temperature and humidity range, combined with the Binder LED light module, can be easily adapted for plant growth applications. The system provides precise control throughout all growth stages, featuring three independent light channels and real-time programming options to perfectly meet the unique needs of plants.

Package contents

Binder KBF 720 standard climate chamber with extended temperature and humidity range

• Temperature range: +20°C to +50°C
• Humidity range: 20% to 50% relative humidity (RH)
• Proven APT.line™ preheating chamber technology
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with environmentally friendly R-600a refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity control with capacitive humidity sensor and rapid steam humidification
• Housing design with HIT technology
• Stainless steel interior
• Interior doors made of safety glass with metal oxide coating
• Two stainless steel shelves
• Large access port with silicone plug
• Floor-standing design with sturdy twin casters and front brakes
• Stackable desktop models, up to 130 liters in capacity
• Intuitive touch-screen controller with time-segmented and real-time programming
• Ergonomically adjustable control terminal (for devices 470 liters or larger)
• Indicator triangle with illuminated status display (for devices 470 liters or larger)
• Internal data logger, measured values can be read in open format via USB
• Independent Class 3.3 temperature safety device (DIN 12880) with visual and acoustic alarms
• Device self-test with comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic version

Binder light module for plant growth

• 16 LED light strips with mounting clips
• Lighting control unit with program controller, power supply, and fresh air pump
• Mounting rails and screws for securing the lighting control unit
• Special silicone foam plugs for sealing the access port
• Cabling

Control unit functions
• Three light channels, individually adjustable from 10% to 100%
• Real-time programming
• Twilight function
• Ventilation function

Laboratory dishwasher with liquid dispensing & hot air drying DryPlus
• Construction type: Freestanding, can be builtunder, slimline
• Casing: Stainless Steel
• In-door salt container
• AutoClose – automatic door lock
• Buzzer, acoustic signal at end of programme
Control system
• Control type: M Touch Flex, full-touch colour display
• Programmable
• Programme sequence display, selectable display languages
Standard electrical connection
• Electrical connection: 3N AC 400V 50HZ
• Total rated load in kW: 9,30
Water connection/drainage
• Cold water [number]: 1
• Hot water [number]: 1
• DI water [number]: 1
• Required flow pressure in kPa: 200-1000
Drying unit
• Air throughput in m³/h: 60
• HEPA filter class H13, HEPA filter filtration efficiency (in accordance with DIN EN1822) in %: >99,95
• Heat dissipation into the room in MJ/h: 5,40
Features
• 1 dispenser pump for liquid cleaning agent
• Suction lance for media canisters 10–20 l (optional)
• DS5 Flex suction lance
• Spray pressure monitoring
• DryPlus - Efficient hot air drying
• Chamber lighting
• Variable-speed heater pump
• Wash cabinet made from high-quality stainless steel (1.4301/304)
Connection options
• External dispensing modules

Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation ensure optimal storage of materials.

Product Features

• Fan-assisted cooling system
• Automatic defrost
• Temperature range: 0 °C to +16 °C
•
Easy Operation

• Built-in handle along the full height of the door
• 2.4” color electronic control panel with touch & swipe function
• Easy-to-clean stainless steel interior lining
• Flush-mounted interior lighting (vertical, full-height side LED lighting)

Safety and Reliability

• Temperature stability up to: ±3 °C
• VCC variable speed compressor
The variable-speed compressors always provide the appropriate performance. This results in reduced energy consumption and increased temperature stability.
• Warning signal in case of malfunction: optical and acoustic
• SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, another temperature sensor is available for measuring the simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen, calibrated, and used as the reference for the device's alarm function, ensuring safer storage based on real product temperature values.
• Power failure alarm
In case of a power outage, the built-in battery maintains power for at least twelve hours and immediately activates an audible and visual alarm. Additional indication of when the power outage started and the maximum temperature reached.
• LightAlarm
In case of uncontrolled temperature rise, a door left open, or another issue, the internal lighting of the device starts to flash.
• Alarm history: Easy quality control
Logging important data from the last 10 alarms (e.g., date or maximum temperature) for the final quality assessment of stored goods.
• Built-in data logger: Trackable for years
Complete traceability independent of monitoring systems with up to 5 years of logging for temperature profiles, alarm history, and service information. Stored data can be retrieved via the USB port.
• The door automatically closes if opened at less than a 90° angle.
• Probe access: 1 x Ø 12 mm
• Electronic locking system: Protects against unauthorized access with locking/unlocking via PIN code or remote control.
• SmartLock: Automatic door locking in case of temperature alarm, only accessible by authorized personnel.
• Long lifespan

Compliance and Documentation

• DIN 13277 and IEC 61010-2-011 compliance
Liebherr laboratory and pharmaceutical refrigeration units meet all the features and performance criteria necessary for full compliance with DIN 13277. This standard defines requirements and test procedures for cooling and freezing equipment used in laboratories and for drug storage.
• Temperature distribution and consistency according to IEC 60068-3
• Safety according to IEC 61010-2-011
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring systems)

Technical Data

• Gross/net volume: 642/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• White, stainless steel exterior casing
• Door/Cover material: insulated glass
• Adjustable shelves: 4
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638
• Shelf load capacity: 60 kg
• Door opening direction: right, reversible
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 169/152 kg
• Energy consumption/year: 317 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 365 kJ/h
• Refrigerant: R 600a
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~

Optimally designed as space-saving solution to be used with a large-scale evaporator and other peripheral devices: this compact undercounter chiller can be perfectly placed among one of our Hei-VAP Industrial models. The power supply of the rotary evaporator is ensured by a power socket at the rear of the chiller. Moreover and despite its small footprint, this chiller also provides space for a vacuum pump and mounting possibilities for the automatic module Hei-VOLUME Distimatic Pro.

At the same time, with its cooling capacity of up to 5 kW, this recirculation chiller is extremely powerful. It has a large reservoir being particularly useful for peak loads, and a high flow rate. It is suitable even for demanding liquids like low-boilers and continuous evaporation, combined with the automatic module Hei-VOLUME Distimatic Pro.

Technical data

• Dimensions (W × H × D): External dimensions [W×D×H] 1100 x 730 x 730 mm | Installation dimensions [WxD] 1100 x 950 mm
• Working temperature range: -10°C to +40°C
• Cooling capacity: at 20°C: 5000 W | at 10°C: 3100 W | at 0°C: 2100 W | at -10°C: 900 W
• Circulation pump Flow rate [max.] 40 l/min | Flow pressure [max.] 3,0 bar
• Coolant tank: 28 liter
• Permitted ambient temperature range: 5°C to 40°C
• Max. operating pressure: 18 bar
• Protection class (EN 60529): IP20
• Acoustic pressure: 62,5 dB(A) [distance 1m]

Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• With flap door (LV)
• Solid state relays provide for lownoise operation
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Port for thermocouple in the rear wall or in the furnace door

We particularly recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.

Standard Equipment
• Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
• Muffle heated from four sides
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• With flap door (L)
• Adjustable working air inlet in the door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Defined application within the constraints of the operating instructions
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automation gas supply system
• Port for thermocouple in the rear wall or in the furnace door

The latest Labculture® G4 (LB2 G4) Biosafety Cabinet with 100% exhaust airflow mechanism provides a high level of containment and user and product protection. LB2 G4 also has fail-safe system where in case of exhaust failure, the cabinet’s main fan automatically shuts down to ensure safety.

The new BSC with Centurion Touchscreen controller is NSF-certified, ergonomically designed, and work zone lighted with bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Features:

• Centurion Touchscreen Controller
Intuitive, comprehensive, and easy-to-understand
Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
Defined details of alarm types with clear instructions for proper intervention
Centered and angled down for easy reach & viewing
Selectable Quickstart mode for fast operation
• Dimmable LED
Adjustable work zone brightness
Ideal light intensity of 1200 lux
Saves energy and optimizes work comfort
• Ergonomic Sash
8” sash opening
Frameless, shatterproof, and UV-absorbing tempered glass
• Tray support beams and holder
Support beams for less vibration and holder for easy drain pan cleaning
• USB Port and Remote Modbus
USB port to access cabinet data log and BMS connectivity
Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
• Cabinet Construction
Stainless steel side walls with side capture zones and negative pressure to optimize containment
Single-piece work tray, spill retaining and easy to clean
• Green Product
Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
Extremely low energy consumption
• ULPA Filter
10x filtration efficiency compared to the HEPA filter
Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
Same 10 years filter life and replacement cost as HEPA filters
*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*>99.999% at MPPS, H14 as per EN 1822 EU
• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

The package incudes:

• Magnetic stirrer Hei-PLATE Mix'n'Heat Ultimate. Fast and precise heating - Without overshoot - Gentle to the sample.
• The electrical lab jack e-Lift for a comfortable and secure work.

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.

Product benefits

• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
• Advanced programming options

Main features

• Temperature range: +10 °C above ambient temperature up to +300 °C
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with interval and real-time programming
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
• Ergonomic handle design
• Computer interface: Ethernet
• Internal data logger, measured values can be read out in open format via USB

Heidolph Hei-CHILL Pro 1100 chiller

A cooling capacity of up to 1100 watt allows an effective and powerful cooling of every application, even at low temperatures, or the supply of multiple evaporation systems by a recirculation chiller.

• The highest performance for achieving the set target values quickly and for keeping temperatures constant even when using high polar solvents or during continuous evaporation processes, e.g. in combination with the automatic Hei VOLUME Distimatic Pro module
• Environmentally friendly by using natural refrigerants (R 290) and an efficient cooling system with low energy fans
• Touchscreen controller with glass surface and integrated level indicator
• RS 232 connection option for activating your device via a Hei VAP Expert Control or Ultimate Control or via the Heidolph laboratory software Process solutions
• Soft running noises for a trouble free work with speed controlled fans
• For applications from -10 C bis +40 C with a temperature constancy of +/ 0,5 C, reliable cooling for different workflows

Temperature-sensitive medicines, vaccines and samples must be stored in the most reliable conditions. To be available whenever they are needed, they must be stored round the clock in maximum safety.
Liebherr pharmaceutical refrigerators compliant with DIN 13277 have been specially designed for these particular requirements. With their dynamic cooling system, highly effective insulation and precise temperature control, they guarantee absolutely reliable storage of sensitive substances and preparations. Visual and audible alarm systems provide additional safety.
The combination of maximum temperature stability, energy efficiency, robustness and ease of use lightens your daily workload – and saves you money in the long term because of the extremely low energy and operating costs.

Product features

• Pharmacy drawers
Optimal overview, easy access, high temperature stability: the practical organisational system made of cold-conducting aluminium comes with a transparent front, perforated base, flexible dividing walls and a ¾-extension drawer. Medicines, vaccines and other items can be quickly found – and the door closed again with minimal loss of cold air.

• Integrated data logger
The integrated logger records the temperature profile, alarm history and service information for up to five years. The data can be read out directly from the appliance via the USB interface.

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing.

• Power failure alarm
If a malfunction occurs, an integrated battery provides a visual and audible alarm and takes over the power supply. As soon as the power is restored, the time of failure and the maximum temperature reached are displayed.

• Vertical LED lighting
Vertical LED lighting provides optimal illumination of the interior over the entire height of the appliance. This not only saves you time looking for things, but, above all, cuts energy costs.

• LightAlarm
In the event of an uncontrolled temperature rise or other problems, the interior light of the appliance starts flashing. This quickly shows when action is needed.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.

• SmartLock
To prevent products from accidentally entering circulation after an interruption in the cold chain, SmartLock automatically locks the door if there is an alarm. Only authorised persons can unlock it again.

• SmartMonitoring
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur.

• Integrated WiFi/LAN interface
The integrated WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits

• Antimicrobial handle with opening mechanism
The smooth-turning handle contains special antimicrobial substances that make it particularly hygienic. Regular and time-consuming disinfection is not necessary.

• Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

• Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety

Temperature-sensitive medicines, vaccines and samples must be stored in the most reliable conditions. To be available whenever they are needed, they must be stored round the clock in maximum safety.
Liebherr pharmaceutical refrigerators compliant with DIN 13277 have been specially designed for these particular requirements. With their dynamic cooling system, highly effective insulation and precise temperature control, they guarantee absolutely reliable storage of sensitive substances and preparations. Visual and audible alarm systems provide additional safety.
The combination of maximum temperature stability, energy efficiency, robustness and ease of use lightens your daily workload – and saves you money in the long term because of the extremely low energy and operating costs.

Product features

• Integrated data logger
The integrated logger records the temperature profile, alarm history and service information for up to five years. The data can be read out directly from the appliance via the USB interface.

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing.

• Power failure alarm
If a malfunction occurs, an integrated battery provides a visual and audible alarm and takes over the power supply. As soon as the power is restored, the time of failure and the maximum temperature reached are displayed.

• Vertical LED lighting
Vertical LED lighting provides optimal illumination of the interior over the entire height of the appliance. This not only saves you time looking for things, but, above all, cuts energy costs.

• LightAlarm
In the event of an uncontrolled temperature rise or other problems, the interior light of the appliance starts flashing. This quickly shows when action is needed.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.

• SmartLock
To prevent products from accidentally entering circulation after an interruption in the cold chain, SmartLock automatically locks the door if there is an alarm. Only authorised persons can unlock it again.

• SmartMonitoring
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur.

• Integrated WiFi/LAN interface
The integrated WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits

• Antimicrobial handle with opening mechanism
The smooth-turning handle contains special antimicrobial substances that make it particularly hygienic. Regular and time-consuming disinfection is not necessary.

• Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

• Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety

Liebherr refrigerator for laboratories and research

Constant temperatures are essential when storing sensitive substances. This especially applies to work in laboratories, where even the slightest deviations can jeopardise the quality of research results. This is why Liebherr has developed new refrigerators and freezers specifically for this sector, combining maximum refrigeration performance with optimum temperature stability. Innovative safety features with monitoring and alarm functions offer all-round protection from all kinds of incident and malfunction. The next generation of appliances also set new standards in terms of energy efficiency and total cost of ownership. On the next few pages we present the latest results of research and development by the refrigeration specialists at Liebherr and show how they can benefit safety in your laboratory.

Product features

• Integrated data logger
The integrated logger records the temperature profile, alarm history and service information for up to five years. The data can be read out directly from the appliance via the USB interface.

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits.

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing

• Power failure alarm
If a malfunction occurs, an integrated battery provides a visual and audible alarm and takes over the power supply. As soon as the power is restored, the time of failure and the maximum temperature reached are displayed.

• LightAlarm
In the event of an uncontrolled temperature rise or other problems, the interior light of the appliance starts flashing. This visually shows when action is needed.

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.

• Mechanical lock
Liebherr professional appliances are equipped with a mechanical lock and two keys. This ensures that unauthorised persons cannot access your valuable and sensitive stored goods.

• SmartMonitoring
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur.

• Integrated WiFi/LAN interface
The integrated WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners.

• Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

• Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety

• ±3 K temperature stability
Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr Laboratory refrigerators have an impressive maximum deviation of just ±3 from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.

• Standard compliance
The devices fully comply with the DIN 13277 standard and the IEC 61010-2-011 standard.

Liebherr refrigerator for laboratories and research

Constant temperatures are essential when storing sensitive substances. This especially applies to work in laboratories, where even the slightest deviations can jeopardise the quality of research results. This is why Liebherr has developed new refrigerators and freezers specifically for this sector, combining maximum refrigeration performance with optimum temperature stability. Innovative safety features with monitoring and alarm functions offer all-round protection from all kinds of incident and malfunction. The next generation of appliances also set new standards in terms of energy efficiency and total cost of ownership. On the next few pages we present the latest results of research and development by the refrigeration specialists at Liebherr and show how they can benefit safety in your laboratory.

Product features

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits.

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing

• Power failure alarm
When mains power return the device gives a visual and audible warning signal.

• LightAlarm
In the event of an uncontrolled temperature rise or other problems, the interior light of the appliance starts flashing. This visually shows when action is needed.

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.
• Mechanical lock
Liebherr professional appliances are equipped with a mechanical lock and two keys. This ensures that unauthorised persons cannot access your valuable and sensitive stored goods.

• SmartMonitoring (optional)
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur.

• WiFi/LAN interface (optional)
The WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners.

• Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

• Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety

• ±3 °C temperature stability
Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr Laboratory refrigerators have an impressive maximum deviation of just ±3 °C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.

• Standard compliance
The devices fully comply with the DIN 13277 standard and the IEC 61010-2-011 standard.

Liebherr offers refrigerators and freezers with a spark-free interior specifically for storing explosive and highly flammable substances in laboratories and in the chemical industry. The inner liners meet the safety requirements of EU Directive 2014/34/EU (ATEX) and have been tested according to the EN 1127-1, IEC 60079-0 and IEC 60079-15 standards by electro-suisse – SEV (Swiss association for electrical and power engineering and information technology), an approved ATEX conformity evaluation organisation.

Product features

• +2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction, the SafetyDevice takes control, stabilising the temperature, activating the alarm and protecting the contents from freezing

• ±3 °C temperature stability
Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr Laboratory refrigerators have an impressive maximum deviation of just ±3 °C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.

• Power failure info
The power failure info function reports when the appliance was temporarily without power and what the maximum temperature was during this time. This allows you to better assess the potential loss of quality.

• Min./max. temperature log
The min./max. temperature log stores the minimum and maximum interior temperatures and shows on the display whether the storage temperatures were within the tolerance limits.

• Easy-to-clean interior
The inner liner made of fully recyclable, robust and odourless polystyrene is manufactured in one piece without joints. This makes it quick and easy to clean the large, rounded corners.

• Feedthrough for external sensors
An integrated opening allows a separate sensor to be connected for additional temperature monitoring without having to drill holes or break the door seal.

• Mechanical lock
Liebherr professional appliances are equipped with a mechanical lock and two keys. This ensures that unauthorized persons cannot access your valuable and sensitive stored goods.

• SmartMonitoring
The cloud-based digital solution continuously monitors and documents temperatures and alerts you immediately via email, text message or phone if any deviations occur

• Retrofittable WiFi/LAN interface
The retrofittable WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or existing local systems.

• Antimicrobial handle with opening mechanism
The smooth-turning handle contains special antimicrobial substances that make it particularly hygienic. Regular and time-consuming disinfection is not necessary

• Replaceable door seal
Save time and money: the insertable Liebherr door seals are easy to change. If a seal is damaged, you can replace it yourself without any tools. Contact Liebherr Customer Service to purchase replacements.

•Self-closing door < 90°
To make loading, unloading and cleaning easier, the appliance door stays open if opened by more than 90°. If the opening angle is less than 90°, it closes automatically for safety.

For reproducible results and liquid transfer
The pump drive of the model 120 of the Hei-FLOW Expert series can be operated with either single-channel or multi-channel pump heads. The flow rates with single-channel pump heads are in the range of 0.38 — 813 ml/min; with multi-channel pump eads from 0.005 — 329 ml/min. By integrating an analog interface, it is possible to control all functions externally. In addition, an optional foot switch can be adapted to enable dosing by foot pressure. Hands thus remain free to perform other work, for example, to hold the tubing and the vessel. A speed of 5 — 120 rpm with a control accuracy of ±0.5% guarantees optimum process results.
Other technical Data:
• Speed setting: scale
• Electronic speed control: digital
• Select direction of rotation: CW / CCW
• Analog interface: for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
• Safety feature: electronic current limiter and overheat protection

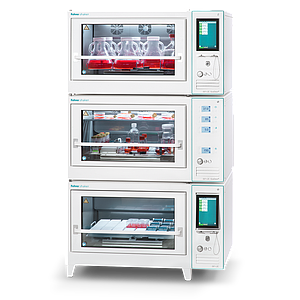

The Kuhner Rack-Shaker SBM/SS-X is a space saving shaker system designed for environmental rooms, laboratories and corridors. It is an extendable rack system with integrated shaking units made of stainless steel. Size and configuration can be altered at any given time.
Flexible, integrated system
Up to four shaking units (SS-X) can be incorporated into a single rack. The robustly built rack system ensures the shaking units run quietly. The rack system is designed and constructed for maximum flexibility, can be adapted to fit almost any room, and is easily extended. The configuration of the shaking units can be altered at any time with little effort. Each shaking unit is fitted with a speed controller and operates independently. Users are able to choose either orbital or linear motion as well as a suitable shaking diameter for each unit.
Ideal solution for temperature controlled rooms
The rack system is suitable for use in temperature controlled rooms. Racks and shaking units are made of stainless steel with hermetically sealed electronic parts.
Low energy consumption – low heat generation
The Kuhner drive generates minimal heat which is an important factor when using the rack system in temperature controlled rooms.
Technical data SBM: SMX1900, SEM: SMX1901
Weight SBM: 54kg
Weight SS-X: 60kg
Operation menu in de, fr, en, it, es
Interface, standard: CAN-Bus
Interface, optional: USB, Ethernet, digital, analogue
Ambient temperature: 0°Cup to 60°C
Consumption, maximum: 240W (4 machines, max. Acceleration)
Consumption, maximum: 480W (4 machines with high torgue drive)
Consumption, typical: 50W (4 machines)
Shaking motion Speed
* orbital, Ø 12.5mm 20...500 rpm
* orbital, Ø 25.0mm 20...400 rpm
* orbital, Ø 50.0mm 20...300 rpm
* linear, 12.5mm 20...400 rpm
* linear, 25.0mm 20...300 rpm
* linear, 50.0mm 20...200 rpm
* can be changed
