Inserts for wide-necked glassware

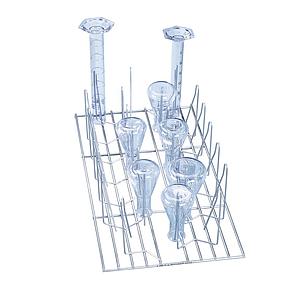

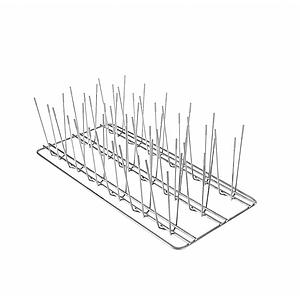

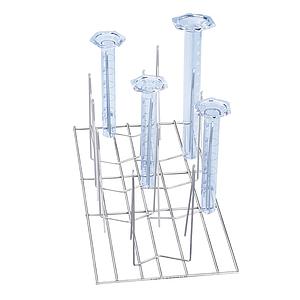

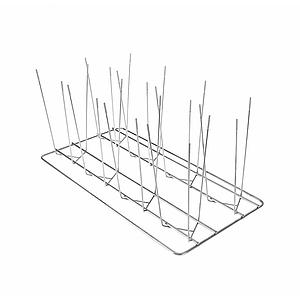

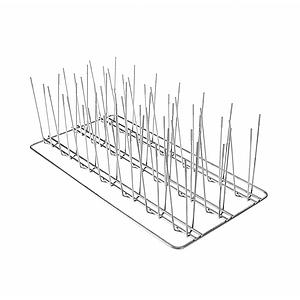

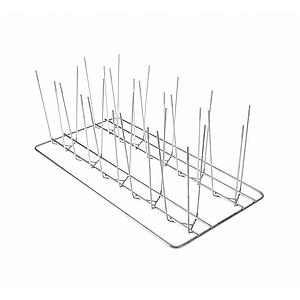

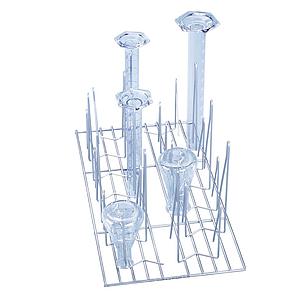

% Miele E 106 insert 1/2 • Area of application: reprocessing laboratory glassware and measuring cylinders • Equipped with 10 spring hooks x 175 mm height & 16 x 105 mm height • The distance between the spring hooks is approx. 60 mm	% Miele E 106/1 insert 1/2 For the optimum loading of wide neck flasks, measuring cylinders, etc. • Area of application: reprocessing laboratory glassware • Equipped with 26 small spring hooks x 105 mm height • The distance between the spring hooks is approx. 60 mm	% Miele E 106/2 insert 1/2 For the optimum loading of wide neck flasks, measuring cylinders, etc. • Area of application: reprocessing laboratory glassware • Equipped with 13 large spring hooks x 175 mm height • The distance between the spring hooks is approx. 85 mm	% Miele E 109 insert 1/2 For the optimum loading of beakers up to 250 ml. • Area of application: reprocessing laboratory glassware • Suitable for 21 glass beakers up to 250 ml • Equipped with 21 x 3 stay bars • For use in upper and lower basket
% Miele E 110 insert 1/2 For the optimum loading of beakers from 250 to 600 ml. • Area of application: reprocessing laboratory glassware • Suitable for 10 glass beakers between 250 - 600 ml • Equipped with 10 x 3 stay bars • For use in lower basket	% Miele E 111 insert 1/2 For the optimum loading of beakers from 600 to 1,000 ml. • Area of application: reprocessing laboratory glassware • Suitable for 8 glass beakers between 600 - 1000 ml • Equipped with 8 x 3 stay bars • For use in lower basket	% Miele E 124-06 insert For the optimum loading of bottles. Surface area 100 x 100 mm. • 16compartments, dimension: 100 x 100 mm (bottle), 48 x 48 mm (neck) • For use in lower basket Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.	% Miele E 125-06 insert For the optimum loading of bottles. Surface area 125 x 125 mm. • 9 compartments, dimension: 125 x 125 mm (bottle), 55 x 55 mm (neck) • For use in lower basket Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
% Miele E 126-06 insert For the optimum loading of bottles. Surface area 45 x 45 mm. • 48 compartments, dimension: 45 x 45 mm (bottle), 28 x 28 mm (neck) Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.	% Miele E 127-06 insert For the optimum loading of bottles. Surface area 57 x 57 mm. • 20 compartments, dimension: 57 x 57 mm (bottle), 46 x 46 mm (neck) Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.	% Miele E 128-06 insert For the optimum loading of bottles. Surface area 71 x 71 mm. • 24 compartments, dimension: 71 x 71 mm (bottle), 46 x 46 mm (neck) Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.	% Miele E 129-06 insert For the optimum loading of bottles. Total area 84 x 84 mm. • 20 compartments, dimension: 84 x 84 mm (bottle), 46 x 46 mm (neck) Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
% Miele E 144 insert 1/2 For the optimum loading of up to 18 beakers. • Area of application: reprocessing laboratory glassware • Suitable for 18 glass beakers • Equipped with 18 x 3 stay bars • For use in upper and lower basket
