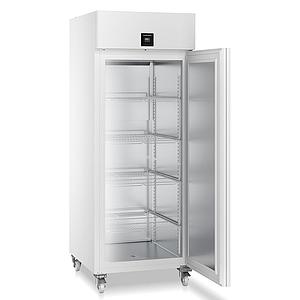

Liebherr SFPv laboratory freezers

Laboratory refrigerators and freezers are expected to offer the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation work together to achieve outstanding energy efficiency, keeping operating costs low and ensuring environmental protection. The advanced components and precise regulation ensure optimal storage conditions for materials over the long term.

Product Features

• Ventilated cooling system
• Cooling technology: NoFrost
• Temperature range: -9 °C to -35 °C

Simple Operation

• Built-in handle spanning the full height of the door
• 2.4" color electronic control panel with touch & swipe functionality
• Easy-to-clean stainless-steel interior
• Flush-mounted internal lighting (vertical, full-height side LED lighting)

Safety and Reliability

• Maximum temperature stability: ±5 °C
• VCC variable speed compressor
Thanks to variable-speed compressors, the appropriate power is always available, which reduces energy consumption while providing higher temperature stability.
• Optical and acoustic alert in case of malfunction
• SafetyDevice: prevents the temperature from dropping below +2 °C, preventing freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, a secondary temperature sensor is available to measure the simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen. This value is calibratable, and the upper/lower alarm thresholds are based on this value for safer storage based on actual product temperatures.
• Power outage alarm
In case of a power outage, the built-in battery maintains power for at least twelve hours and immediately triggers an audible and visual alarm. An additional display indicates the start of the power failure and the maximum temperature reached.
• LightAlarm
If uncontrolled temperature rise, a door left open, or any other problem occurs, the internal lighting of the unit will start flashing.
• Alarm history: Simple quality control
The last 10 alarms are logged with important data (such as date or maximum temperature) to assist in the final quality assessment of stored goods.
• Built-in data logger: Trackable for years
Full traceability independent of monitoring systems, with logging of the temperature profile, alarm history, and service information for up to 5 years. Data can be retrieved via USB port.
• The door automatically closes when opened at less than a 90° angle
• Probe access: 1 x Ø 12 mm
• Electronic lock system: Protection against unauthorized access with PIN code or remote lock/unlock control
• SmartLock: The door automatically locks in case of a temperature alarm, which can only be unlocked by authorized personnel
• Long lifespan

Compliance and Documentation

• DIN 13277 and IEC 61010-2-011 compliance
Liebherr laboratory and pharmaceutical refrigeration units meet all the characteristics and performance criteria necessary for full compliance with the DIN 13277 standard. The DIN 13277 defines the requirements and testing guidelines for refrigeration and deep-freeze equipment used in laboratories and for pharmaceutical storage.
• Temperature distribution and consistency according to IEC 60068-3
• Safety according to IEC 61010-2-011
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring system)

Technical Data

• Gross/net capacity: 614/480 L
• External dimensions (W/D/H): 697/867/2135 mm
• Internal dimensions (W/D/H): 489/638/1470 mm
• White stainless steel exterior
• Door/Cover material: Steel
• Number of adjustable shelves: 4
• Plastic-coated wire shelves
• Usable shelf size (W/D): 570/788 mm
• Shelf load capacity: 60 kg
• Door opening: Right-hand reversible
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 150/132 kg
• Energy consumption/year: 702 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 875 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~

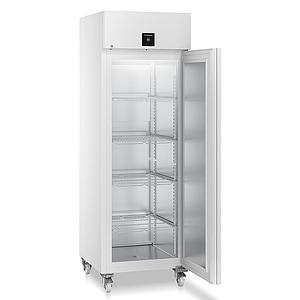

Laboratory refrigerators and freezers are expected to offer the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation work together to achieve outstanding energy efficiency, keeping operating costs low and ensuring environmental protection. The advanced components and precise regulation ensure optimal storage conditions for materials over the long term.

Product Features

Simple Operation
User-friendly solutions for daily use

• Built-in handle spanning the full height of the door
• Monochrome, 3-button electronic control interface
• Easy-to-clean stainless steel interior
• Door stays open at an angle greater than 90°
• Flush-mounted internal ceiling LED lighting

Compliance and Documentation
Built-in safety features to protect sensitive materials

• Temperature adjustment (calibration)
• Logging of minimum/maximum temperature values
The recorded minimum and maximum internal temperatures are saved by the device and can be easily viewed on the display
• Connectivity upgradeable (LAN or WiFi for BMS or SmartMonitoring system)
• Compliance with standards: IEC 60068-3, IEC 61010-2-011

Safety and Reliability
Reliable storage thanks to consistent cooling performance, even under extreme environmental temperature conditions

• Temperature stability: up to ±3 °C for refrigerators / ±5 °C for freezers
• Alarm relay
Alarm forwarding to the monitoring system / never miss any deviation
• Door automatically closes when opened at less than a 90° angle
• Probe access port: 10 mm diameter
• Mechanical door lock
• Long lifespan

Technical Data

• Gross/net capacity: 614/480 L
• External dimensions (W/D/H): 697/867/2135 mm
• Internal dimensions (W/D/H): 489/638/1470 mm
• Energy consumption/year: 774 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 975 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency / voltage: 50 Hz / 220-240 V~
• Ventilated cooling system
• Automatic defrost
• Temperature range: -9 °C to -30 °C
• Exterior casing/colour: steel/white
• Interior lining: Chrome-nickel steel (1.4301 / AISI 304)
• Door/Cover material: steel
• Network connectivity via SmartModule / retrofittable
• WLAN/LAN connection: optional
• Number of adjustable shelves: 4
• Shelf material: steel with plastic coating
• Usable shelf size (W/D): 480/638 mm
• Shelf load capacity: 60 kg
• Castors with arrestor at the front, fixed castors at the rear
• Probe access: 1 x Ø 12 mm
• Door opening direction: right, reversible
• Gross/net weight: 131/113 kg

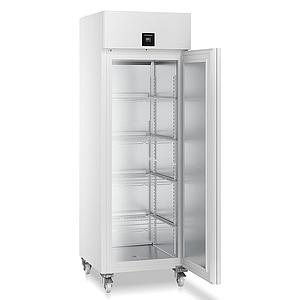

Laboratory refrigerators and freezers are expected to offer the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation work together to achieve outstanding energy efficiency, keeping operating costs low and ensuring environmental protection. The advanced components and precise regulation ensure optimal storage conditions for materials over the long term.

Product Features

Simple Operation
User-friendly solutions for daily use

• Built-in handle spanning the full height of the door
• 2.4” color electronic control interface with touch & swipe functionality
• Easy-to-clean stainless steel interior
• Flush-mounted internal side LED lighting (vertical, full height)

Safety and Reliability

• Temperature stability: up to ±5 °C
• VCC variable speed compressor
Thanks to variable speed compressors, the right performance is always available. This results in reduced energy consumption and provides greater temperature stability.
• Visual and audible alarm for malfunctions
• SafetyDevice: prevents the temperature from dropping below +2 °C and freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, a secondary temperature sensor is available to measure simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen. It is calibratable, and the upper/lower thresholds of the device's alarm functions are based on this value for safer storage based on real product temperatures.

Power Failure Alarm
In case of a power failure, the built-in battery maintains power for at least twelve hours and immediately triggers an audible and visual alarm. Additional indication of when the power outage began and the maximum temperature reached.

• LightAlarm
If there is uncontrolled temperature rise, an open door, or another issue, the internal lighting of the unit will start flashing.
• Alarm History: Quality control made easy
Logs the key data of the last 10 alarms (e.g., date or maximum temperature) for final quality assessment of stored goods.
• Built-in data logger: trackable for years
Complete traceability independent of monitoring systems, with logging of temperature profiles, alarm history, and service information for up to 5 years. Stored data can be read via USB port.
• The door automatically closes when opened at an angle less than 90°
• Probe access port: 1 x Ø 12 mm
• Electronic locking system: protection against unauthorized access with PIN code or remote locking/unlocking
• SmartLock: the door automatically locks in case of a temperature alarm and can only be unlocked by authorized personnel
• Long lifespan

Compliance and Documentation

• Compliance with DIN 13277 and IEC 61010-2-011
Liebherr's laboratory and pharmaceutical refrigeration units meet all the characteristics and performance criteria required for full compliance with the DIN 13277 standard, which defines the requirements and testing procedures for cooling and freezing equipment used in laboratories and for drug storage.
• Compliance with IEC 60068-3 standard for temperature distribution and consistency
• Compliance with IEC 61010-2-011 standard for safety
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring system)

Technical Data

• Gross/net capacity: 871/702 L
• External dimensions (W/D/H): 787/1017/2135 mm
• Internal dimensions (W/D/H): 579/788/1470 mm
• White, stainless steel external casing
• Door/Cover material: steel
• Adjustable shelves: 4
• Plastic-coated racks
• Usable shelf size (W/D): 570 / 788 mm
• Shelf load capacity: 60 kg
• Door opening: right, reversible
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 167/149 kg
• Energy consumption/year: 748 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 935 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency / voltage: 50/60 Hz / 220-240 V~

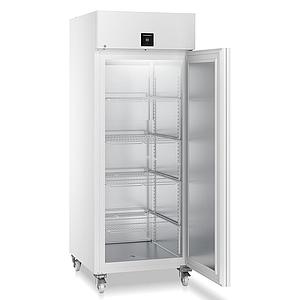

Laboratory refrigerators and freezers are expected to offer the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation combine to deliver outstanding energy efficiency, keeping operating costs low while protecting the environment. The advanced components and precise regulation ensure optimal storage conditions for materials over the long term.

Product Features

Simple Operation
User-friendly solutions for daily use

• Built-in handle spanning the full height of the door
• Monochrome, 3-button electronic control interface
• Easy-to-clean stainless steel interior
• The door stays open at an angle greater than 90°
• Flush-mounted internal ceiling LED lighting

Compliance and Documentation
Built-in safety features to protect sensitive materials

• Temperature setting (calibration)
• Recording of minimum/maximum temperature values
The set minimum and maximum internal temperatures are saved by the device and can be easily viewed on the display
• Connectivity via retrofit (LAN or WiFi for BMS or SmartMonitoring system)
• Standard compliance: IEC 60068-3, IEC 61010-2-011

Safety and Reliability
Reliable storage due to consistent cooling performance, even under extreme environmental temperature conditions

• Temperature stability: up to ±3 °C for Refrigerator / ±5 °C for Freezer
• Alarm relay
Alarm signals are transmitted to the monitoring system, ensuring no deviations go unnoticed
• The door automatically closes when opened less than 90°
• Probe access port: 10 mm diameter
• Mechanical door lock
• Long lifespan

Technical Data

• Gross/net capacity: 871/702 liters
• External dimensions (W/D/H): 787/1017/2135 mm
• Internal dimensions (W/D/H): 489/638/1470 mm
• Energy consumption per year: 870 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 1110 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency / voltage: 50 Hz / 220-240 V~
• Ventilated cooling system
• Automatic defrost
• Temperature range: -9°C to -30°C
• External casing/color: steel / white
• Interior casing: Chrome-nickel steel (1.4301 / AISI 304)
• Door/Cover material: steel
• Network connectivity option: SmartModule / retrofittable
• WLAN/LAN connectivity: optional
• Number of adjustable shelves: 4
• Shelves material: steel with plastic coating
• Usable shelf size (W/D): 480 / 638 mm
• Shelf load capacity: 60 kg
• Castors with arrestor at the front, fixed castors at the rear
• Probe access port: 1 x Ø 12 mm
• Door opening direction: right, reversible
• Gross/net weight: 166/149 kg

Laboratory refrigerators and freezers are expected to provide the highest level of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation ensure exceptional energy efficiency, leading to low operating costs while safeguarding the environment. The advanced components and precise regulation ensure the optimal storage of materials over the long term.

Product Features

Easy Operation
User-friendly solutions for daily use

• Full-height integrated handle
• 2.4” color electronic interface with touch & swipe functionality
• Easy-to-clean stainless steel interior
• Flush-mounted, full-height internal side LED lighting

Safety and Reliability

• Ventilated cooling system
• NoFrost cooling technology
• Temperature range: -9 °C to -35 °C
• Temperature stability: ±5 °C maximum
• VCC variable speed compressor
The variable speed compressors ensure the right performance is always available. This results in reduced energy consumption and improved temperature stability.
• Optical and acoustic alarms in case of failure
• SafetyDevice: prevents the temperature from dropping below +2 °C, avoiding freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, another temperature sensor is available to measure simulated product temperature. The value measured by the product temperature sensor can also be displayed on the screen. The value can be calibrated, and the device’s alarm thresholds will then be based on this value, ensuring safer storage based on real product temperature values.
• Power failure alarm
In case of a power outage, the built-in battery maintains power for at least twelve hours, activating an immediate audible and visible alarm. Additional indication of the start of the power outage and the maximum temperature reached is also provided.
• LightAlarm
If the internal temperature rises unchecked, the door is left open, or other issues occur, the internal lighting will begin to flash.
• Alarm history: Simple quality control
The last 10 alarms, including key data like date and maximum temperature, are logged for final quality assessment of stored goods.
• Built-in data logger: traceable for years
Complete traceability independent of monitoring systems through logging of the temperature profile, alarm history, and service information for up to 5 years. Stored data can be read via USB port.
• Door automatically closes if opened less than 90°
• Probe access port: 1 x Ø 12 mm
• Electronic locking system: protection against unauthorized access with PIN or remote lock/unlock capability
• SmartLock: automatic door locking in case of temperature alarm, which can only be unlocked by authorized personnel
• Long lifespan

Compliance and Documentation

• Complies with DIN 13277 and IEC 61010-2-011
Liebherr laboratory and pharmaceutical refrigeration units meet all the characteristics and performance criteria necessary for full compliance with the DIN 13277 standard. DIN 13277 specifies requirements and test procedures for refrigeration and freezer equipment used in laboratories and for storing pharmaceuticals.
• IEC 60068-3 standard for temperature distribution and consistency
• IEC 61010-2-011 standard for safety
• Temperature adjustment (calibration)
• Recording of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring system)

Technical Specifications

• Gross/net volume: 1391/1091 l
• External dimensions (W/D/H): 1427/867/2135 mm
• Internal dimensions (W/D/H): 1210/638/1470 mm
• White, stainless steel external casing
• Door/Cover material: steel
• Adjustable shelves: 8
• Shelves: plastic-coated grates
• Usable shelf size, mm (W/D): 570 / 788
• Shelf load capacity: 60 kg
• Door opening: right fixed / left fixed
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 235/210 kg
• Energy consumption/year: 1162 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 1485 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency / voltage: 50/60 Hz / 220-240 V~a

Users expect laboratory refrigerators and freezers to provide the highest levels of safety and reliability. The precise electronic control, forced-air cooling system, and highly efficient insulation together result in outstanding energy savings, keeping operating costs low while ensuring environmental protection. The advanced components and precise regulation work together to ensure optimal storage of materials.

Product Features

Easy Operation
User-friendly solutions for everyday use

• Built-in handle spanning the full height of the door
• Monochrome, 3-touch electronic control panel
• Easy-to-clean, stainless steel interior
• Door stays open at angles greater than 90°
• Flush-mounted internal ceiling LED lighting

Compliance and Documentation
Built-in safety features to protect sensitive materials

• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
The device records the minimum and maximum internal temperatures, which are easily readable on the display
• Connectivity for retrofitting (LAN or WiFi for BMS or SmartMonitoring systems)
• Standard compliance: IEC 60068-3, IEC 61010-2-011

Safety and Reliability
Reliable storage due to consistent cooling performance, even under extreme ambient temperature conditions

• Temperature stability: ±3 °C for refrigerator / ±5 °C for freezer
• Alarm relay
Transmits alarms to the monitoring system / ensures no deviations go unnoticed
• The door automatically closes if the opening angle is less than 90°
• Probe access port with a diameter of 10 mm
• Mechanical door lock
• Long service life

Technical Specifications

• Gross/net capacity: 1391/1091 liters
• External dimensions (W/D/H) mm: 1427/867/2135
• Internal dimensions (W/D/H) mm: 1210/638/1470
• Energy consumption/year: 464 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 1420 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency/voltage: 50 Hz / 220-240 V~
• Ventilated cooling system
• Automatic defrost
• Temperature range: -9 °C to -30 °C
• External casing/color: steel / white
• Internal lining: Chrome-nickel steel (1.4301 / AISI 304)
• Door/Cover material: steel
• Network connectivity via SmartModule / retrofittable
• WLAN/LAN port: optional
• Number of adjustable shelves: 8
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480/638 mm
• Shelf load capacity: 60 kg
• Castors with arrestor at the front, fixed castors at the rear
• Probe access port: 1 x Ø 12 mm
• Door opening direction: left fixed / right fixed
• Gross/net weight: 225/200 kg
