Other accessories for shakers

%
Kühner Shaking unit SS-X
Shaking unit SS-X SMX1910
• Tray, size: F (800x420mm)
• Loading, maximum: 25kg
• Shaking motion: speed
* orbital, Ø 12.5mm 20...500 rpm
* orbital, Ø 25.0mm 20...400 rpm
* orbital, Ø 50.0mm 20...300 rpm
* can be changed
• Setting, digital: 1 rpm
• Accuracy, absolute: ± 0.5 rpm
• Timer: 1s ... 999h
• Acceleration: controlled
• Active brake: adjustable
• Stop on position: adjustable
%
Kühner SBM/SEM excl. drive

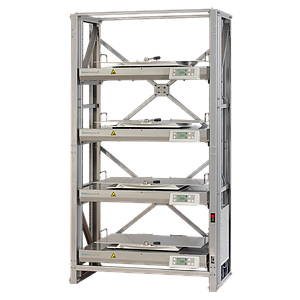

The Kühner Rack-Shaker SBM/SS-X is a space saving shaker system designed for environmental rooms, laboratories and corridors. It is an extendable rack system with integrated shaking units made of stainless steel. Size and configuration can be altered at any given time.
Up to four shaking units (SS-X) can be incorporated into a single rack. The robustly built rack system ensures the shaking units run quietly. The rack system is designed and constructed for maximum flexibility, can be adapted to fit almost any room, and is easily extended. The configuration of the shaking units can be altered at any time with little effort. Each shaking unit is fitted with a speed controller and operates independently. Users are able to choose either orbital or linear motion as well as a suitable shaking diameter for each unit.
Ideal solution for temperature controlled rooms
The rack system is suitable for use in temperature controlled rooms. Racks and shaking units are made of stainless steel with hermetically sealed electronic parts.
Low energy consumption – low heat generation
The Kühner drive generates minimal heat which is an important factor when using the rack system in temperature controlled rooms.
Technical data SBM: SMX1900, SEM: SMX1901
Weight SBM: 54kg
Weight SS-X: 60kg
Interface, standard/optional: CAN-Bus/USB, Ethernet, digital, analogue
Ambient temperature: 0°Cup to 60°C
Consumption, maximum: 240 W (4 machines, max. Acceleration)
Consumption, maximum: 480 W (4 machines with high torgue drive)
Consumption, typical: 50 W (4 machines)
%
Kühner Extension modul SEM-X
The Kuhner Rack-Shaker SBM/SS-X is a space saving shaker system designed for environmental rooms, laboratories and corridors. It is an extendable rack system with integrated shaking units made of stainless steel. Size and configuration can be altered at any given time.
Flexible, integrated system
Up to four shaking units (SS-X) can be incorporated into a single rack. The robustly built rack system ensures the shaking units run quietly. The rack system is designed and constructed for maximum flexibility, can be adapted to fit almost any room, and is easily extended. The configuration of the shaking units can be altered at any time with little effort. Each shaking unit is fitted with a speed controller and operates independently. Users are able to choose either orbital or linear motion as well as a suitable shaking diameter for each unit.
Ideal solution for temperature controlled rooms
The rack system is suitable for use in temperature controlled rooms. Racks and shaking units are made of stainless steel with hermetically sealed electronic parts.
Low energy consumption – low heat generation
The Kuhner drive generates minimal heat which is an important factor when using the rack system in temperature controlled rooms.
Technical data SBM: SMX1900, SEM: SMX1901
Weight SBM: 54kg
Weight SS-X: 60kg
Operation menu in de, fr, en, it, es
Interface, standard: CAN-Bus
Interface, optional: USB, Ethernet, digital, analogue
Ambient temperature: 0°Cup to 60°C
Consumption, maximum: 240W (4 machines, max. Acceleration)
Consumption, maximum: 480W (4 machines with high torgue drive)
Consumption, typical: 50W (4 machines)
Shaking motion Speed
* orbital, Ø 12.5mm 20...500 rpm
* orbital, Ø 25.0mm 20...400 rpm
* orbital, Ø 50.0mm 20...300 rpm
* linear, 12.5mm 20...400 rpm
* linear, 25.0mm 20...300 rpm
* linear, 50.0mm 20...200 rpm
* can be changed
%
Kühner Stationary tray LT-X

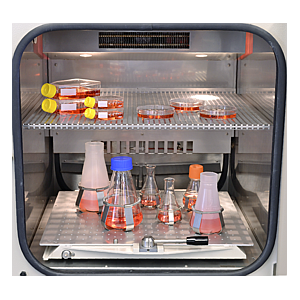

The Kuhner LT-X incubator shaker can be fitted with a shelf allowing cultivation in petri dishes. One or two shelves can be placed above the shaking table and fixed to the chamber walls with four screws.
%
Kühner 2 x Stationary tray above shaker LT-X
The Kuhner LT-X incubator shaker can be fitted with a shelf allowing cultivation in petri dishes. One or two shelves can be placed above the shaking table and fixed to the chamber walls with four screws.
%
Kühner Stationary tray ISF1-Z(C)
The ISF1-Z and ISF1-X incubator shakers can be fitted with a shelf allowing cultivation in petri dishes. One or two shelves can be placed above the shaking table and fixed to the chamber walls with four screws.
%
Kühner Stationary tray ISF4-X
The ISF4-X incubator shakers can be fitted with a shelf allowing cultivation in petri dishes. One or two shelves can be placed above the shaking table and fixed to the chamber walls with four screws.
%
Kühner Pull out table

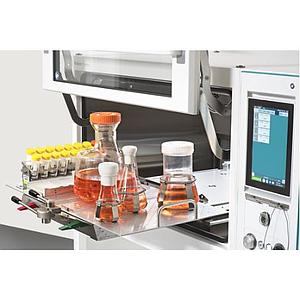

The pull-out table is designed for the ISF1-X, ISF4-X and ISF1-Z incubator shakers as well as the Rack System. This remarkable device makes loading and unloading trays much easier.
%
Kühner Dual table upper part ISF1-Z(C)

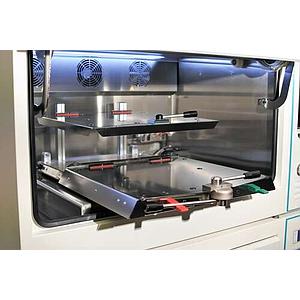

The dual table is an easy and economical way of doubling the shaking capacity. The dual shaking table consists of two levels. Each level will accept an F size tray. The lower level of the dual table is the standard Z-table or a pull-out table. Combining the pull-out feature (only for the lower platform) with the dual-level function, allows faster access to the bottom level for easy handling and better ergonomics.
The distance between the two levels of the dual table is adjustable. However, with the dual table the shaking speed is limited.
%

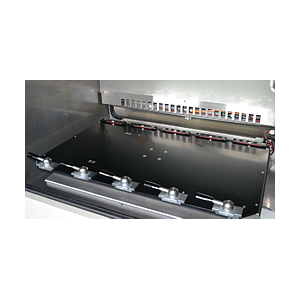

Kühner EPFL table 5 clamps (Z)
This table accepts up to five tube holders, each with a capacity of 24 x 50ml tubes. Each tube holder has its own clamp handle allowing it to be easily taken out of the incubator shaker and put on a clean bench while the other tubes keep on shaking. It’s also possible to shake microtiter plates on the EPFL-table, using Duetz 4-place coverclamps. If you have a Kuhner F-size tray (800 x 420mm), you can also clamp that on the table instead of individual holders.
%
Kühner Black window (opaque) LT-X

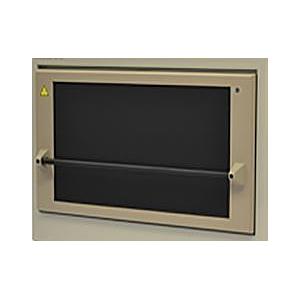

Available for light sensitive medium or organisms. Any Kuhner incubator shaker can be delivered with blackened windows to prevent unwanted daylight or UV radiation inside the incubator.
%
Kühner Black window ISF1-Z(C)
Available for light sensitive medium or organisms. Any Kuhner incubator shaker can be delivered with blackened windows to prevent unwanted daylight or UV radiation inside the incubator.
%
Kühner Black window (film) ISF4-X
Available for light sensitive medium or organisms. Any Kuhner incubator shaker can be delivered with blackened windows to prevent unwanted daylight or UV radiation inside the incubator.
%
Kühner LT-X water bath unheated compl.

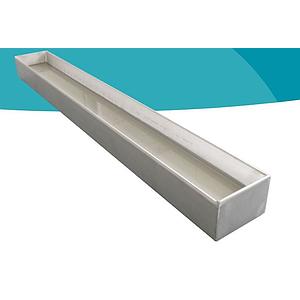

To reduce evaporation from shake flasks or microtitre plates a stainless steel water bath can be placed inside the incubator. This water bath is not fitted with an automatic water supply and must be topped up manually.
%
Kühner Water bath-Z for Kuhner CleanShield
Kuhner CleanShield is a disposable inlay for the newly designed water bath-Z. Development focused on simplifying the cleaning process, saving users’ time, and providing a cleaner environment in our shaker incubators. The inlays are sterilely packaged and available in a pack of six. The process of changing the Kuhner CleanShield takes just five minutes and cultivation can resume immediately after. Harsh cleaning agents might leave residues or vapors in the incubator that could negatively impact your cultures; the CleanShield reduces this risk and protect your bath-Z leading to less maintenance and an increased lifetime of the shaker incubator.
%
Kühner UV-lamp LT-X
As in a biological safety cabinet, the chamber of a Kuhner incubator shaker can also be sterilized with an integrated UV lamp. The lamp is situated to maximise irradiation of the chamber and shaking table. The UV lamp has a clearly marked external switch and when the door is opened, the UV-lighting is automatically switched off.
%
Kühner UV-lamp ISF1-Z(C)
As in a biological safety cabinet, the chamber of a Kuhner incubator shaker can also be sterilized with an integrated UV lamp. The lamp is situated to maximise irradiation of the chamber and shaking table. The UV lamp has a clearly marked external switch and when the door is opened, the UV-lighting is automatically switched off.
%
Kühner UV lamp ISF4-X
In the space between the incubator chamber and the rear outer wall of the ISF4-X, a UV lamp can be mounted. This can be used while shaking to decrease the number of germs in the circulated air.
%
Kühner Illumination for photosynthesis LT-X

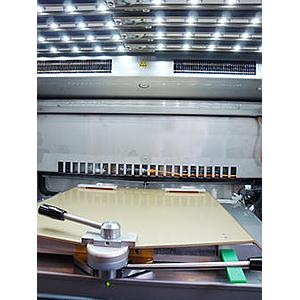

The ceiling of any Kuhner incubator shaker can be fitted with LED modules for the cultivation of phototrophic organisms. The control module allows full programming of night/day cycles and variable light intensity.
%
Kühner O₂ controller LT-X
A reliable control of O₂ is essential for cultivating cells (proliferation and metabolism of stem cells) and microorganisms with low/no oxygen demand. The O₂ controller reduces the O₂ level from ambient (20.95% at dry air; normoxia) to approximately 0% O₂ (hypoxic). A digital PID controller adjusts the N2 flow rate to maintain the desired O₂ value.
