Binder MKT environmental simulation chambers

The MKT series chambers are suitable for environmental simulation tests in a wide temperature range (-70...+180°C), with excellent performance and accuracy.

%

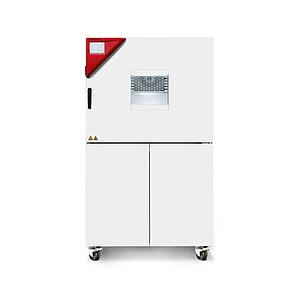

Binder MKT 115 dynamic climate chamber
Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit
%

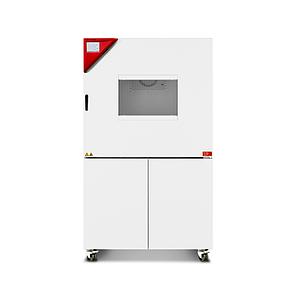

Binder MKT 240 dynamic climate chamber
Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit
%

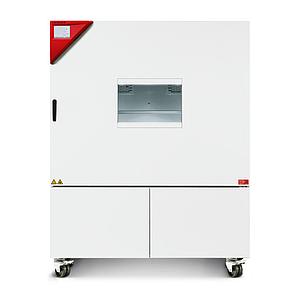

Binder MKT 720 dynamic climate chamber
Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.
Benefits
• Homogeneous climate conditions thanks to APT.line™ technology
• Comprehensive programming and data acquisition
• Large heated viewing window
Important characteristics
• Temperature range: -70 °C to +180 °C
• 4 zero-voltage relay contacts
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Access port with silicone plug (Models 115, 240: 50 mm, left)
• 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Computer interface: Ethernet
• 230 V power socket on the right-side control panel
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Inner chamber made of stainless steel
• CFC-free refrigerants R-452A and R-23
• Cooling with cascade compressor cooling unit
