Economical, safe and reliable low-speed multifunction benchtop centrifuge.

Product features

• Designed for safety - the imbalance sensor identifies a rotor imbalance and stops operation to protect the user. The lid’s unique design allows it to remain open at all angles, thus preventing accidental closure.
• View or adjust speed/time during operation easily with the backlit LCD display. Lid automatically opens after the run is complete and the single-turn rotor lid allows users to access the samples fast.
• FC2706 uses a quiet, maintenance-free brushless DC motor. The centrifuge housing, chamber, and rotor buckets are constructed of corrosion-resistant stainless steel that holds up well to organic solvents.
• The Frontier FC2706 reaches a maximum speed of 6000 rpm/3660 x g in 12 sec. The five optional rotors can handle a sample range from 10 to 100mL in either round bottom or conical bottom tubes. A simple interface allows users to easily change between various functions and set up to nine programs. It's suitable for common laboratory applications, especially for extraction experiments of food, wastewater, and biological samples.

Technical data

• Maximum capacity (rotor): 6 x 100 ml
• Cooling: air cooled

The specialist for H2O pure type ASTM I

The OmniaPure-ST xs basic is the one stop solution to produce ultrapure water fulfilling highest demands of analytical and life sciences laboratories if no local water source is available for direct feedwater connection. The integrated feedwater tank for demineralized water allows a mobile production of ultrapure water even in remote locations.
The standardly integrated OptiFill dispenser is a jack-of-all-trades. It is so ergonomically shaped that it enables one-handed use, not only for system operation but also for the monitoring of all quality parameters.
Retractable and pivotable with a flexible connection for the most comfortable supply of ultrapure water to any vessel.

Features

• Reliable ASTM I ultrapure water quality
• The standardly supplied OptiFill dispenser
o enables one handed dispenser operation
o is detachable and ergonomically shaped
o can be turned and is height adjustable
• Integrated 7 l demineralized feedwater storage tank
• Spent filters are simply and quickly exchanged
• Very space saving – fits almost on an A4 sheet
• Clear view of controls with graphic display
• Leak sensor is standard
• Ready to use, including filter cartridge

Standard system components

• Compact housing with easily accessible operating and service hood that enables simple replacement of spent materials in a few seconds
• Build in feedwater tank with 7l volume for demineralized water storage
• Wide-range power supply unit with automatic voltage adjustment to 48 V that can be internationally used
• Quiet running long-life recirculation pump (< 40dB) for complete recirculation through all parts that contact media right up to the tip of the dispenser
• Ultrapure purification set for removal of inorganic substances and residual inorganic ions
• Quality rinse rinsing valve for complete disinfection of all parts that contact media as well as quality rinses in interval mode
• Multi-language microprocessor for the control and monitoring of all operating and performance parameters
• Dispenser with adapted microfiltration for sterile ultrapure water dispensing at the point-of-use

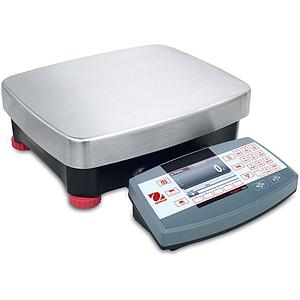

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that make OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.
• Applications
Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
• Display
4.3" (109 mm) Full-color WQVGA graphic display with user-controlled brightness
• Operation
AC power (included) or rechargeable battery (accessory sold separately)
• Communication
Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
• Construction
Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
• Design Features
Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare

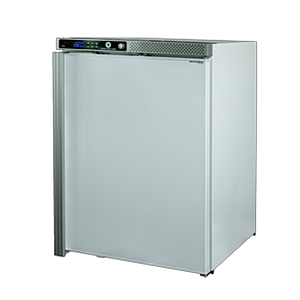

With a compact design, this undercounter fits perfectly beneath your work bench, providing a storage solution that is ideal for places where space is limited.

Featuring the ETR-System™ (Extended Temperature Range) the unit can operate within -20°C to -86°C, giving you flexibility to adjust the cooling to your specific needs, or to save energy reducing both operation costs & carbon emission. The Vestfrost biomedical appliances offer a reliable solution for users seeking industry leading cooling performance and high operation stability.

Product features

• Temperature range: -20 to -86 °C
• Uniformity in performance: 1,7 / -2,6 °C
• Pull down time (from test condition to fabric setpoint): 168 Minutes
• Hold over time (from fabric SP to critical point): 102 Minutes
• Number of compressors: 1
• Material inner cabinet: Stainless steel
• Material outer cabinet: Painted steel
• Insulation type: Polyurethane with cyclopentane
• Lock
• LED light
• Battery backup
• Porthole size: 15 mm
• Dry contact
• Vacuum valve
• Alarms: High / Low temperature, Open door, Power failure, Probe failure
• Noise: 57 dB
• Refrigerant/amount: Nature R / 109g Type & gram
• Internal air distribution (Type) Static
• USB Connection
• Data connection: MODBUS
• Controller abilities: Logging of data & alarms
• Controller languages: Digits
• Log numbers: 35000

With their robust design and precise temperature control, Peltier chillers are ideal for simple temperature control tasks in laboratories and research facilities. They operate without refrigerants and are therefore very environmentally friendly. At the same time, the reliable chillers contribute to lowering operating costs and reducing the ecological footprint thanks to their energy-efficient operation.

The TE400 uses fewer movable components such as compressors for cooling. This makes it comparatively low-maintenance and less susceptible to wear. The Peltier chiller offers a cooling capacity of up to 400 watts and a pump capacity of up to 7 l/min and impresses with its high temperature stability for a wide range of different applications.

Silent Mode

The TE400 Peltier chiller is equipped with an additional operating mode for use with lower cooling power requirements. The noise level is significantly reduced in Silent Mode, contributing to a more pleasant working atmosphere.

Product features

• High temperature stability
• Environmentally friendly operation with low energy consumption
• Economical operation due to high energy efficiency and low energy consumption
• Touch display for easy operation

The VARIO® select DUO pumping units are consisting of a combination of two individual VARIO® pumping units, connected in parallel on the suction side and driven synchronously by one vacuum controller VACUU•SELECT.

The vacuum is controlled accurately. The speed of the two individual pumps is exactly adjusted to the vacuum needs. The controller allows both fully automatic distillations without any user pre-settings as well as specific and reproducible program sequences. The integration into existing control systems via digital and analog interfaces is also possible. The consequent design to highest chemical resistance provides the ideal prerequisite for universal use in chemistry and pharmacy - without any operating fluid such as water or oil.

Performance features

• automatic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
• short process times due to powerful vacuum pump and accurate (hysteresis-free) vacuum control, even for large amounts of steam
• removable vacuum controller VACUU•SELECT, variable to arrange, easy to use with multilingual full-text menus, simply integratable by digital or analog interfaces
• unmatched diaphragm life with minimal operating and maintenance costs
• excellent environmental friendliness due to minimized energy consumption, no operating fluid needs (oil, water) and efficient solvent recovery

Dispenser module for 5-10 litre canisters with level indicator for the automatic dispensing of liquid media.
• Dispenser monitoring – high process security as per EN ISO 15883
• For dispensing liquid cleaning agent/neutralising agent
• 352 mm siphon for 5–10 l media canisters with flexible cap
• Siphon conversion kit for 10–30 l media canisters available

Protect your temperature sensor with this glass coat while working with aggressive liquids.

Compatible with the EKT Hei-Con, the Pt1000 temperature sensor (V4A) and the double sensor Pt1000 (V4A).

The package incudes:

• Magnetic stirrer Hei-PLATE Mix'n'Heat Ultimate. Fast and precise heating - Without overshoot - Gentle to the sample.
• The electrical lab jack e-Lift for a comfortable and secure work.

Support rod extension (250 mm) and end stop to limit the travel path for a secure working with the e-Lift lab jack.

Comfortable and secure work with the electric lab jack e-Lift.

Thanks to the adjusted plate (190 mm x 400 mm), the magnetic stirrer does not wobble or slip. A winch for manual operation and an attachment for additional support rods on the lab jack are both included - for a secure fixing of your setups. The height can be adjusted from 100 mm to 275 mm which corresponds to a vertical lift of 175 mm.

Compatible with the Hei-PLATE Mix 'n' Heat Ultimate magnetic stirrer.

The most powerful, single-stage, highly dynamic temperature control systems

The water-cooled PRESTO W58x is able to quickly and efficiently control the temperature in applications requiring a great deal of power. This model features has an impressive cooling capacity of 33 kW at 20°C, thus ensuring that it maintains large power reserves over its entire working temperature range, especially at temperatures around -30°C to -40°C, which are often necessary for automotive testing.

The PRESTO W58x process system is equipped with a gear pump. As a result, bath fluids with a high viscosity, such as water-glycol mixtures at low temperatures of up to -45 °C, can also be used.

The magnetically coupled pump allows the user to optimally adjust pump capacity to suit the application, even over large distances and height differences, as well as for pressure-sensitive applications. Use of the latest thermodynamic technologies means that the cooling capacity is automatically adjusted to the current power requirements. Combined with further optimizations, the PRESTO W58x is both incredibly economical and energy-efficient.

Powder flasks come with a standard NS 29/32 joint size are also available with NS 24/29 ground joints.

High-performance ultrasonic cleaner for use in the practice, laboratory and workshop.
•The proven and particularly robust SONOREX ultrasonic baths clean thoroughly and gently by means of intensive cavitation bubbles, even in the hard-to-reach places of the cleaning objects.
• A user-friendly twist handle control is used for easy adjustment of the cleaning time.
• For optimally coordinated ultrasonic cleaning, matching baskets, lids and cleaning and disinfection concentrates are available as accessories.
Features:
• PZT-large area oscillating systems
• HF-Frequency 35 kHz
• Timer 1 - 15 minutes and continuous operation
• Tank material: stainless steel AISI 304

Safety cabinet with integrated refrigerators
• 2 refrigerators with temperature range from +3 to +16 degrees Celsius
• Efficient cooling: The cooling compartment has its own door for efficient and economical cooling.
• Refrigerator door is opened/closed separately
• Refrigerant: R 600a
• Maximum fire protection: Maximum safety with Type 90 technology and cooled interior.
• Refrigerator interiors explosion-proof Ex II 3G, Ex nA II T6, SEV 08 ATEX 0149 X
• Self-closing in the event of fire: In case of fire, a thermocouple automatically initiates the uninterrupted closing of the doors. The closure control system ensures that the refrigerator is also self-closing.
• Continuous temperature control: the temperature can be adjusted continuously from +3 degrees °C to +16 degrees °C
• Constant temperatures: The integrated fan ensures stable temperatures.
• Heat energy: Heat energy is extracted via the ventilation openings and the exhaust air (connection) sockets. The air flow is monitored and if the ventilation fails, the refrigerator is automatically switched off. This is done using an ex- haust air monitoring unit for emitting warning signals, which is also available with a ventilator.
• Outer dimensions: 895 x 745 x 2080 (WxDxH) mm
• Inner dimensions per refrigerator: 455 x 435 x 669 (WxDxH) mm
• Voltage: 230 V / 50 Hz
Inner fittings per refrigerator:
• 3 shelves made from shatterpoof glass
• 1 bottom tray: The easily removable bottom tray can be cleaned and discharged without effort.
• 1 perforated sheet insert made of powder-coated sheet steel.

The Hei-PLATE Mix 'n' Heat Ultimate magnetic stirrer paves the way for future-oriented working practices: thanks to its equipment with numerous interfaces, it meets all requirements for digitalization and network. The RS232 and USB B interfaces allow a control via our Hei-Control software, free of charge, as well as our Hei-PROCESS solution. With the LAN interface, you can directly integrate the device into a network, whereas the USB A interface located at the front allows data logging via USB stick. Use the USB C interface and combine the magnetic stirrer with the electric Heidolph lab jack to work even more comfortable and secure.

For controlling the temperature, you can choose between three heating modes: FAST for a particularly quick heating, as well as PRECISE and PRECISE+ for a particularly exact control of your target temperature without overshoot - this is how sensitive samples are optimally protected. Therefore, the device is compatible with the temperature sensor Pt1000 as well as the double sensor Pt1000 that allows the measurement in your sample and in the bath liquid simultaneously. The possibility to program ramps and to create profiles, gives you the full control and increases the precision and reproducibility of your experiments.

For the stirring speed, there is a three-stage setting (start-up behavior). Furthermore, you can set the rotational direction of the magnetic stirring bar and benefit from the automatic stir bar detector. As a result, your sample is optimally stirred at any time, even when there are irregularities while stirring.

This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures > 50 °C, protect against burns.

The patented Kera-Disk® plate made of anodized aluminum is chemical-resistant, scratch-resistant and has a diameter of 145 mm. This unique size makes it suitable for the use with many accessories and samples on a small footprint. Moreover, the material used allows the fastest heating times.

Technical Data

Dimensions (w/d/h): 168 x 299 x 106 mm
Usable Surface heating plate: 145 mm
Weight: 3 kg
Max. Load: 25 kg
Drive: EC motor, counterclockwise/clockwise rotating
Rotation speed range: 100 – 1,400 rpm
Heating power: 800 W at 230 V (EU) 600 W at 115 V (US)
Temperature range: 20 – 350 °C, setting accuracy 1 K
Heating control: PID
Temperature measurement accuracy: Operation with external temperature measuring sensor Pt1000: ± 0.2 K, plus tolerance Pt1000
Temperature measurement resolution: 0,1 K
Display: 2 x TFT display
Protection class (EN 60529): IP 42
Acoustic pressure: < 50 db(A)
Connection: L+N+PE
Protection class IEC 60529: I
Overvoltage Category: II
Power input: Normal operation 230 V: 825 W (EU) / 115 V: 625 W (US) Standby mode: 1.7 W
EMC class: B, Group 1
Permissible ambient conditions: 5 – 31 °C at up to 80 % rel. humidity, 32 – 40 °C at up to 50 % rel. humidity (linearly reducing)

Well-designed features for a carefree stirring and heating.

The magnetic stirrer Hei-PLATE Mix 'n' Heat Expert convinces with its intuitive handling: Thanks to respectively one display per main function (stirring and heating), you have an easily legible eye on all values and settings at any time. The handling is made via two push-and-rotary controls with LED-rings for an easy identification of the active functions. Separate timers for heating and stirring functions create flexibility and let you control your experiments better. The user-friendly menu navigation makes working with this device particularly easy.

For controlling the temperature, you can choose between three heating modes: FAST for a particularly quick heating, as well as PRECISE and PRECISE+ for a particularly exact control of your target temperature without overshoot - this is how sensitive samples are optimally protected. Therefore, the device is compatible with the temperature sensor Pt1000 as well as the double sensor Pt1000 that allows the measurement in your sample and in the bath liquid simultaneously.

For the stirring speed, there is a three-stage setting (start-up behavior). Furthermore, you can set the rotational direction of the magnetic stirring bar and benefit from the automatic stir bar detector. As a result, your sample is optimally stirred at any time, even when there are irregularities while stirring.

This magnetic stirrer is equipped with the most important safety features. The large safety distance between the heating plate and the control panel, as well as the visual residual heat indicator at temperatures > 50 °C, protect against burns.

The patented Kera-Disk® plate made of anodized aluminum is chemical-resistant, scratch-resistant and has a diameter of 135 mm (also available with 145 mm). This makes it suitable for the use with many accessories and samples on a small footprint. Moreover, the material used allows the fastest heating times.

Technical data

• Dimensions (w/d/h): 168 x 299 x 106 mm
• Usable Surface heating plate: 135 mm
• Weight: 3 kg
• Max. Load: 25 kg
• Drive: EC motor, counterclockwise/clockwise rotating
• Rotation speed range: 100 – 1,400 rpm
• Heating power: 800 W at 230 V (EU) 600 W at 115 V (US)
• Temperature range: 20 – 350 °C, setting accuracy 1 K
• Heating control: PID
• Temperature measurement accuracy: Operation with external temperature measuring sensor Pt1000: ± 0.2 K, plus tolerance Pt1000
• Temperature measurement resolution: 0,1 K
• Display: 2 x TFT display
• Protection class (EN 60529): IP 42
• Acoustic pressure: < 50 db(A)
• Rated Voltage: 230 V, 50/60 Hz (EU) 115 V, 50/60 Hz (US)
• Connection: L+N+PE
• Protection class IEC 60529: I
• Overvoltage Category: II
• Degree of pollution: 2
• Power input: Normal operation 230 V: 825 W (EU) / 115 V: 625 W (US) Standby mode: 1.7 W
• EMC class: B, Group 1
• Permissible ambient conditions: 5 – 31 °C at up to 80 % rel. humidity, 32 – 40 °C at up to 50 % rel. humidity (linearly reducing)
• Installation altitude: up to 2,000 m asl

This package includes:
• Magnetic Stirrer Hei-Tec
• Temperature sensor Pt1000 (AISI 316Ti)
• Pt1000 clamping system (includes support rod and attachment with cable inlet)
For comprehensive process documentation and reproducible results
For accurate process documentation with precise setting options and for monitoring the device parameters via the digital display as well as port for the temperature sensor Pt 1000.
• Precise setting options and monitoring of device parameters via the digital display
• With port for the optional temperature sensor Pt 1000 for precise values without temperature fluctuations
• All values can be easily read on the illuminated display even from a distance
• Illuminated buttons indicate activated functions
• With the control knob, the speed can be accurately set between 100 and 1,400 rpm with a speed accuracy of ±2 % and a maximum temperature of 300 °C
• To protect against overheating, an independent safety circuit switches the heating off if the set temperature is exceeded by 25 °C
• To protect the sample, the external sensor monitoring automatically switches off the heating if the sensor is not immersed in the medium
• The timer function allows you to define separate expiry times for the heating and rotation functions. At the end of the process an acoustic signal sounds
• Residual heat indicator effectively protects from burns

• Precise VARIO® control via motor speed adjustment in combination with VARIO diaphragm pumps
• Classic two-point vacuum control in connection with an external in-line solenoid valve
• Graphic user interface simplifies laboratory work
• Predefined applications for quick, save time and guarantee reproducible results
• Application editor allows easy customization
• Accuracy of measurement: < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) mbar/hPa/torr
• Dimension LxWxH: 152x127x41 mm
• Interface: Ethernet / USB (Type A)
• Vacuum sensor: VACUU•SELECT Sensor
• Cable length connection: 2 m

• Efficient – strong pump power with the variable-speed pump
• Freestanding, 1 glazed hinged door
• Number of wash levels: 3
• TouchControl control, color touch display
• Electric heating
• Loading and unloading with telescopic runners
• Electric door lock
• Usable capacity: 241 liters
• Cold water: 1
• Hot water: 1
• Steam condenser
• Multi-component filter system
