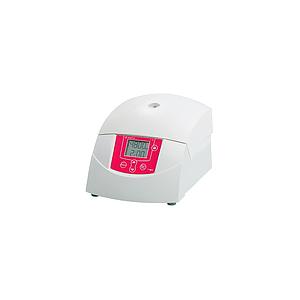

The Sigma 1‑7 is designed for the separation of blood and urine specimens in medical practices and small labs, and due to its strong performance it is also used in environmental analytics, schools and universities.

The Sigma 1‑7 compact benchtop centrifuge is especially good in delivering exact results in a very short time. With these attributes combined with convenient, intuitive operation and the motorised lid lock, which enables effortless closing of the centrifuge, it offers more than comparable devices in its segment.

What makes the Sigma 1‑7 benchtop centrifuge so attractive?
The Sigma 1‑7 benchtop centrifuge is the only one in its segment that supports up to ten saved programs. This allows routine protocols to be stored and work processes to be optimised. In operation this small centrifuge runs with especially low vibration, quietly and pleasantly.

The perfectly matched fixed-angle rotor of the Sigma 1‑7, with a maximum capacity of 6 x 15 ml, is well suited to meet the demands of small volumes of specimens. The maximum RCF of 6,153 x g and the short braking and acceleration times of this small centrifuge allow separation times to be shortened considerably.

Product options
Centrifuge & rotor package

Applications: Doctors in private practice, Veterinary practices, Small laboratory workstations, Hospitals

The compact Sigma 1‑14 centrifuge fits in every lab and fulfils the most stringent technical requirements. Its strong performance and large range of rotors are unique:
Two fixed-angle rotors provide a maximum capacity of 24 x 1.5/2.0 ml. Thanks to rotors for PCR strips, microhaematocrit capillary tubes and filter tubes, the Sigma 1‑14 is an all-round laboratory centrifuge suitable for a wide variety of applications. It is popular for molecular biology applications such as DNA, RNA and protein isolation, clinical chemistry, and in research labs and food labs, universities, and the pharmaceutical industry.

What makes the Sigma 1‑14 mini centrifuge so attractive?
The handy Sigma 1‑14 mini centrifuge combines effective performance with reliability. It is pleasantly quiet even at maximum speed, has wonderfully short braking times, is easy to use, and can be closed effortlessly thanks to a motorised lid lock. Customers also appreciate the price/performance ratio.

Applications: hospitals, infant stations, Veterinary clinics, Food labs, universities & colleges, pharmaceutical labs, cell culture labs

The Sigma 1‑14 is also available as the Sigma 1‑14K refrigerated centrifuge.

Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation work together to ensure optimal storage of materials.

Product Features

• Fan-assisted cooling system
• Automatic defrost
• Temperature range: -2 °C to +16 °C

Easy Operation

• Built-in handle along the full height of the door
• 2.4” color electronic control panel with touch & swipe function
• Easy-to-clean stainless steel interior lining
• Integrated, flush-mounted interior lighting (vertical, full-height side LED lighting)

Safety and Reliability

• Temperature stability up to: ±3 °C
• VCC variable speed compressor
The variable-speed compressors always provide the appropriate performance. This results in reduced energy consumption and increased temperature stability.
• Warning signal in case of malfunction: optical and acoustic
• SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
• PT1000 product temperature sensor
In addition to the built-in control sensor, another temperature sensor is available for measuring the simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen, calibrated, and used as the reference for the device's alarm function. This ensures safer storage based on real product temperature values.
• Power failure alarm
In case of a power outage, the built-in battery maintains power for at least twelve hours and immediately activates an audible and visual alarm. Additional indication of when the power outage started and the maximum temperature reached.
• LightAlarm
In case of uncontrolled temperature rise, a door left open, or another issue, the internal lighting of the device starts to flash.
• Alarm history: Easy quality control
Logging important data from the last 10 alarms (e.g., date or maximum temperature) for the final quality assessment of stored goods.
• Built-in data logger: Trackable for years
Complete traceability independent of monitoring systems with up to 5 years of logging for temperature profiles, alarm history, and service information. Stored data can be retrieved via the USB port.
• The door automatically closes if opened at less than a 90° angle.
• Probe access: 1 x Ø 12 mm
• Electronic locking system: Protects against unauthorized access with locking/unlocking via PIN code or remote control.
• SmartLock: Automatic door locking in case of temperature alarm, only accessible by authorized personnel.
• Long lifespan

Compliance and Documentation

• DIN 13277 and IEC 61010-2-011 compliance
Liebherr laboratory and pharmaceutical refrigeration units meet all the features and performance criteria necessary for full compliance with DIN 13277. This standard defines requirements and test procedures for cooling and freezing equipment used in laboratories and for drug storage.
• Temperature distribution and consistency according to IEC 60068-3
• Safety according to IEC 61010-2-011
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring systems)

Technical Data

• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• White, stainless steel exterior casing
• Door/Cover material: steel
• Adjustable shelves: 4 pcs
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638
• Shelf load capacity: 60 kg
• Door opening direction: right, reversible
• Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation work together to ensure optimal storage of materials.
• Product Features
• Fan-assisted cooling system
• Automatic defrost
• Temperature range: -2 °C to +16 °C
• Easy Operation
• Built-in handle along the full height of the door
• 2.4” color electronic control panel with touch & swipe function
• Easy-to-clean stainless steel interior lining
• Integrated, flush-mounted interior lighting (vertical, full-height side LED lighting)
• Safety and Reliability
• Temperature stability up to: ±3 °C
• VCC variable speed compressor
• The variable-speed compressors always provide the appropriate performance. This results in reduced energy consumption and increased temperature stability.
• Warning signal in case of malfunction: optical and acoustic
• SafetyDevice: prevents the temperature from dropping below +2 °C to avoid freezing
• PT1000 product temperature sensor
• In addition to the built-in control sensor, another temperature sensor is available for measuring the simulated product temperature. The value measured by the product temperature sensor can be displayed on the screen, calibrated, and used as the reference for the device's alarm function. This ensures safer storage based on real product temperature values.
• Power failure alarm
• In case of a power outage, the built-in battery maintains power for at least twelve hours and immediately activates an audible and visual alarm. Additional indication of when the power outage started and the maximum temperature reached.
• LightAlarm
• In case of uncontrolled temperature rise, a door left open, or another issue, the internal lighting of the device starts to flash.
• Alarm history: Easy quality control
• Logging important data from the last 10 alarms (e.g., date or maximum temperature) for the final quality assessment of stored goods.
• Built-in data logger: Trackable for years
• Complete traceability independent of monitoring systems with up to 5 years of logging for temperature profiles, alarm history, and service information. Stored data can be retrieved via the USB port.
• The door automatically closes if opened at less than a 90° angle.
• Probe access: 1 x Ø 12 mm
• Electronic locking system: Protects against unauthorized access with locking/unlocking via PIN code or remote control.
• SmartLock: Automatic door locking in case of temperature alarm, only accessible by authorized personnel.
• Long lifespan
• Compliance and Documentation
• DIN 13277 and IEC 61010-2-011 compliance
• Liebherr laboratory and pharmaceutical refrigeration units meet all the features and performance criteria necessary for full compliance with DIN 13277. This standard defines requirements and test procedures for cooling and freezing equipment used in laboratories and for drug storage.
• Temperature distribution and consistency according to IEC 60068-3
• Safety according to IEC 61010-2-011
• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
• Integrated connectivity (LAN or WiFi for BMS or SmartMonitoring systems)
• Technical Data
• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• White, stainless steel exterior casing
• Door/casing material: steel
• Adjustable shelves: 4 pcs
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638
• Shelf load capacity: 60 kg
• Door opening direction: right, reversible
• Castors with arrestor at the front, fixed castors at the rear
• Gross/net weight: 148/130 kg
• Annual energy consumption: 172 kWh
• Ambient temperature: +10 °C - +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 600a
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~
• Gross/net weight: 148/130 kg
• Annual energy consumption: 172 kWh
• Ambient temperature: +10 °C - +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 600a
• Noise level: 60 dB(A)
• Frequency/voltage: 50/60 Hz / 220-240 V~

Each package contains a telescopic stand and a corresponding clamp to ensure ideal, ergonomic use on laboratory benches. In addition to that, we offer you two accessory parts that are meant to increase your own safety at work: the stirrer shaft guard and the beaker holder.

Included package components:
• Hei-TORQUE Ultimate 100 overhead stirrer
Speed range (rpm): 10 - 2000
Max. torque (Ncm): 100
• Telescopic stand
• Clamp
• Shaft guard
• Beaker holder

FVG – VERTICAL LAB STERILIZER
A COMPACT AND ERGONOMIC CHOICE.
• Applications: Bio-Pharmaceutical, Microbiology
• Loads: Sealed & unseald containers, Machine parts, Tools, Culture Media, Glassware
• Processes: Sterilization
• Useful chamber capacity: 50, 75,140 liters
FVG Vertical Lab Sterilizer combines excellent performances with overall high quality materials, simplicity of use and optimal consumption.
All FVG series autoclaves are equipped with a built-in steam generator with automatic water feed pump. These autoclaves can treat a wide range of laboratory goods with reliable sterilization technology, such as: glassware and plastic articles, unwrapped instruments, machine parts and components, porous goods, culture media and liquids in open small size containers, laboratory regular waste in open bags.
The FVG series sterilizers are suitable for the sterilization and decontamination in many different laboratory sectors as:
Private and public microbiology labs.
High schools and universities.
Research institutes.
Life science and biotech labs.
Please, click on the image “recommended kit” to check out all possible configurations referred to FVG series.
DESIGN AND TECHNICAL FEATURES
FVG series can be provided in three different chamber useful volumes: 50 liters (FVG1) – 75 liters (FVG2) – 140 liters (FVG3).
Sterilization chamber and lid are made of 316L stainless steel, with mirror polished sanitary finishing. FVG operates at high-pressure (3,5 bar g) and temperature (140°C).
Exclusive horizontal swiveling lid with pneumatic gasket “rotate-and-seal”, for improved user safety. FVG is equipped with a heat recovering system for water preheating to steam generator, assuring utilities cost saving.
FVG has TSC 09 microprocessor control system with graphic color LCD display and an exclusive dual sensor system, by pressure and temperature, for double regulation and control of the sterilization process.
KEY BENEFITS
• Ergonomically designed chamber for maximizing loadable capacity.
• Quick connections to all utilities for easy handling and installation.
• Timed free steaming with pulses for effective air removal.
• 14 free configurable automatic programs.
• Multilevel passwords protected key-users access to ensure process safety.
• Set of four castors for easy moving and installation in lab room.
• GLP compliance
COMPLIANT TO
• PED Directive 2014/68/UE – Pressure equipment
• Machine Directive Macchine 2006/42/EC
• EMC Directive 2014/35/UE
• LVD Directive 2006/95/UE

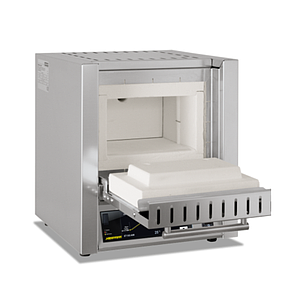

The muffle furnaces L have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability.

Standard Equipment
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type S (1200 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• With flap door (L)
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• R7 (1 program with 1 segment)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• With lift door (LVT)
• Solid state relays provide for lownoise operation
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Port for thermocouple in the rear wall or in the furnace door

Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) ../12 models, when you need a higher application temperature.

Standard Equipment
• Heating from two sides
• Heating elements on support tubes ensure free heat radiation and a long service life
• Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• With lift door (LT)
• Adjustable air inlet in the furnace door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

We particularly recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.

Standard Equipment
• Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
• Muffle heated from four sides
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• With lift door (LT)
• Adjustable working air inlet in the door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Defined application within the constraints of the operating instructions
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automation gas supply system
• Port for thermocouple in the rear wall or in the furnace door

• Certifications: IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
/ Liebherr laboratory equipment conforms to EN/IEC 60079-0 or EN-IEC 60079-7 and complies with EU Directive 2014/34/EU (“ATEX Directive”). Classification of the interior to <Ex> II 3 G Ex ec IIC T6 (declared as Zone 22) makes them suitable for flammable substances in closed containers that could form explosive atmospheres.
• Cooling system, refrigerator compartment: dynamic; defrosting method: automatic
• Cooling system, freezer compartment: static; defrosting method: manual; cooling technology SmartFrost
• Side wall material: steel
• Colour: white
• Door/Cover material: full-panel door; door seal are replaceable. Door hinges are right reversible; antimicrobial handle with opening mechanism.
• Malfunction: warning signal optical and acoustical
• Control unit: Touch; temperature display: exernal digital
• Potential-free contact
• Power failure alarm: when mains power returns
• Connectivity solution: retrofittable, Interface: WLA/LAN (optional)
• Connectivity type: SmartModule
• In the refrigerator section: 4 glass shelves (460x422 mm); floor storage; the height of the shelves can be adjusted by 35 mm; load capacity per shelf: max. 40 kg
• In the freezer section: 3 removable plastic drawers, on glass shelves; load capacity per shelf max. 40 kg
• Material of interior containers: Plastic white
• Exterior dimensions (H x W x D): 597x654x2044 mm
• Energy consumption per year: 390 kWh
• Refrigerant: R 600a

• Certifications: DIN 13277, IEC 61010-2-011, ISO 6, EN 60068-3
• Cooling system, refrigerator compartment: dynamic; defrosting method: automatic
• Cooling system, freezer compartment: dynamic; defrosting method: automatic
• Side wall material: steel
• Colour: white
• Door/Cover material: full-panel door; self-closing door; door seal are replaceable. Door hinges are right reversible; antimicrobial handle with opening mechanism.
• Malfunction: Warning signal optical and acoustical
• Control unit: Touch & Swipe
• Potential-free contact
• Power failure alarm: immediately upon power failure for min. 12h
• Data logger: intergrated, USB interface
• Connectivity type: SmartModule
• Connectivity solution: integrated, removable; Interface: WLAN/LAN
• Product sensor: integrated
• Material of interior containers: plastic white
• In the refrigerator section: 4 pcs 460x423 mm steel grid shelves with white protective coating; the height of the shelves can be adjusted by 35 mm; load capacity per shelf: max. 45 kg
• In the freezer section: 3 removable plastic drawers on glass shelves; load capacity per shelf: max. 40 kg
• Exterior dimensions (H x W x D): 204.4 x 59.7 x 65.4 cm
• Energy consumption per year: 277 kWh
• Refrigerant: R 600a

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Product features

• Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
• Display: 4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
• Operation: AC adapter (included)
• Communication: RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
• Construction: Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
• Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

Technical details

• Maximum Capacity: 82 g
• Readability: 0.00001 g
• Pan Size: 80 mm
• Internal Calibration: AutoCal™ - Automatic
• Draftshield: Included
• Dimensions: 9.05 in (354 mm x 340 mm x 230 mm)
• Legal for Trade: Not Applicable
• Auxiliary Display Model: Available as an Accessory
• Auto Door: Not Applicable
• Working Environment: 10°C – 30°C, 80%RH, non-condensing
• Net Weight: 5.1 kg
• In-Use Cover: Included
• Communication: USB; RS232 (Included); USB Host
• Power: AC Adapter (Included)
• Units of Measurement: Singapore Tael; Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce
• Display: Full-Color 4.3 in Touchscreen WQVGA
• Pan Construction: Stainless Steel
• Built-in Ionizer: No
• Stabilization Time: 8 s
• Repeatability, typical: 0.00002 g
• Minimum Weight (USP, 0.1%, typical): 20 mg
• Linearity ±: 0.1 mg

The latest Labculture® G4 (LB2 G4) Biosafety Cabinet with 100% exhaust airflow mechanism provides a high level of containment and user and product protection. LB2 G4 also has fail-safe system where in case of exhaust failure, the cabinet’s main fan automatically shuts down to ensure safety.

The new BSC with Centurion Touchscreen controller is NSF-certified, ergonomically designed, and work zone lighted with bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Features:

• Centurion Touchscreen Controller
Intuitive, comprehensive, and easy-to-understand
Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
Defined details of alarm types with clear instructions for proper intervention
Centered and angled down for easy reach & viewing
Selectable Quickstart mode for fast operation
• Dimmable LED
Adjustable work zone brightness
Ideal light intensity of 1200 lux
Saves energy and optimizes work comfort
• Ergonomic Sash
8” sash opening
Frameless, shatterproof, and UV-absorbing tempered glass
• Tray support beams and holder
Support beams for less vibration and holder for easy drain pan cleaning
• USB Port and Remote Modbus
USB port to access cabinet data log and BMS connectivity
Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
• Cabinet Construction
Stainless steel side walls with side capture zones and negative pressure to optimize containment
Single-piece work tray, spill retaining and easy to clean
• Green Product
Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
Extremely low energy consumption
• ULPA Filter
10x filtration efficiency compared to the HEPA filter
Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
Same 10 years filter life and replacement cost as HEPA filters
*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*>99.999% at MPPS, H14 as per EN 1822 EU
• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. These devices provide extra powerful pressure and suction pumps and have an incredibly high heating output of 3 kW, enabling even more dynamic temperature control for external applications.

With a working temperature range of -50 ... +200 °C, the Refrigerated / heating circulator MAGIO MX-1800F delivers an outstanding cooling capacity of 1.87 kW at 20 °C despite its compact design. This cooling machine works with natural, environmentally-friendly refrigerant and was developed with a focus on energy efficiency. This means significant savings on the operating costs for numerous applications, which also means rapid amortization of the procurement cost. At the same time, the lower energy consumption positively contributes to climate protection.

High resolution TFT touch display

The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.

Product features
• USB connection
• Class III (FL) according to DIN 12876-1
• RS232 interface for online communication
• Integrated programmer
• Integrated external Pt100 connection
• Ethernet
• Analog interfaces (accessory)
• Ideal for demanding external applications
• Simple control of complex applications
• Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
• Continuously adjustable, extremely powerful pressure / suction pump
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Connections for solenoid valve
• Integrated pump connection M16×1

Refrigerated / heating circulators of the CORIO CD series distinguish themselves with a great price-to-performance ratio. Durable and dependable, they are suitable for a wide range of standard and routine work in both laboratories and industrial environments.

With a working temperature range of -20 ... +150 °C, the Refrigerated / heating circulator CORIO CD-200F delivers an outstanding cooling capacity of 0.22 kW at 20°C despite its compact design. The optimized design of the bath tank and cooling coil makes the bath more spacious and userfriendly for the operator. Ventilation slots and connections are located on the front and rear, allowing several units to be placed next to each other in order to save space.

Product features

• Models for internal and external applications
• Bright, white, easy to read display
• Very quiet
• USB connection
• Integrated pump connection M16×1
• easy switching between internal and external circulation
• Bath lid and drain tap included
• removable ventilation grid
• Refrigeration unit without side vents
• Class III (FL) according to DIN 12876-1
• Space-saving cooling coil design yields more usable space in the bath tank

This space saving model with a cooling capacity of 400 watt is ideal for a large number of evaporation tasks in the laboratory.

▪ Compact light weight for a flexible positioning on the laboratory bench, in a fume hood or, due to its increased pumping capacity, also under the laboratory bench
▪ Sustainable and environmentally friendly using natural refrigerants (R 290) and an optimized control
▪ RS 232 interface for activating your device via a Hei VAP Expert Control or Ultimate Control or via the Heidolph laboratory software solutions
▪ Low operating noises for a trouble free work

With a maximum of +300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air flow, the powerful fans ensure rapid heating.

BENEFITS

• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
• Advanced programming options

IMPORTANT CHARACTERISTICS

Temperature range: +22°C above ambient temperature to +300°C
High temperature accuracy thanks to APT.line™ technology with increased heating output
Reinforced fan with adjustable speed
Electromechanical control of the exhaust air flap
Intuitive touchscreen controller with time-segment and real-time programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/ acoustic alarm available for selection on the controller
Failsafe function – backup sensor Pt 100
Computer interface: Ethernet
Internal data logger, measured values can be read out in open format via USB

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.

Product benefits

• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
• Advanced programming options

Main features

• Temperature range: +10 °C above ambient temperature up to +300 °C
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with interval and real-time programming
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
• Ergonomic handle design
• Computer interface: Ethernet
• Internal data logger, measured values can be read out in open format via USB

RO-ED ready pure water systems with ED cell, tank and pressure pump
The ready-to-connect pure water system from stakpure combines all treatment steps in one compact and low-noise unit. Pre-treatment, reverse osmosis, electro-deionisation for residual desalination, pure water tank and pressure boosting are integrated in a control cabinet to save space and are completely pre-assembled. Pure water units of the RO ED READY "to use" series produce pure water according to all common standards such as ASTM and DIN 285 + DIN EN 15883 and aqua purificata. Specially developed for the safe and economical supply of pure water to complete laboratory floors and AEMP's in medical practices and hospitals, as well as manufacturing plants in the food and pharmaceutical industries (aqua purificata for external parts cleaning), where space is still a scarce commodity. The clean water system is completed with a digital microprocessor control for display and control of all operating and performance parameters.

Design and scope of delivery
• Electronics control cabinet with transparent door to accommodate all system components
• Pre-treatment unit to protect against free chlorine and particles in the feed water
• Softening unit to protect against limescale and blockage
• Reverse osmosis unit for desalination and removal of removal of organic and inorganic impurities
• Electro-deionisation module for residual desalination Continuously self-regenerating - without chemicals
• Pure water tank incl. level control for automatic storage of the produced pure water
•Pressure boosting system incl. pressure control for low-noise low-noise delivery of the pure water to the end user
•Multilingual microprocessor control with LCD display for control and monitoring of RO systems. Display of Permeate conductivity, fully automatic flushing cycles and potential-free fault indication.

System structure softening plant
Volume-controlled system, for softening iron- and manganese-free drinking water, according to drinking water regulations, fully automatic, 5-step central control valve type FLECK 5600 SXT with microprocessor made of NORYL with integrated blending valve and water meter. Pressure tank made of corrosion-resistant GRP, incl. cation exchanger of highest quality, installed in cabinet tank with float valve
• Type: WEA 32 Compact
• Capacity: 32 m³x°dH
• Nominal flow rate: 0.32 m³/h
• Resin quantity: 8 litres
• Salt supply: 25kg
• Salt consumption: approx. 1.92 kg/reg.
• Water consumption: 0.08 m³/reg.
• Operating pressure: 2 to 6 bar
• Water temperature: max. 30°C
• Ambient temperature: max. 5 to 40°C
• Electrical connection: 220 V 50 Hz
• Dimensions of housing (WxDxH) 310 x 430 x 660 mm
• Connection: R1

System design Reverse Osmosis Unit
• Safety pressure switch for shutting off when feed water pressure is too low
• High-pressure pump for generating the working pressure
• Reverse osmosis membrane incl. pressure pipe and all necessary fittings
• Working pressure manometer for system monitoring and fault diagnosis
• 2 x solenoid valves for raw water and quality flushing
• 2 x regulating valves for setting the working pressure and the WCF rate
• Measuring cells for determining the raw and clean water conductivity values
• Complete piping made of PA, PP, POM and stainless steel materials

Structure electro-deionisation
• Electro-deionisation module
• Flow meter for pure water, concentrate and electrode rinse water
• Set of regulating valves
• Conductivity measuring cell
• Complete piping in PA, PP, POM and stainless steel
• Microprocessor control with LCD display for control and display of all operating and performance parameters.

Digital microprocessor control
Universally applicable for the automatic control and monitoring of reverse osmosis systems. The controller is equipped with one or optionally two conductivity meters with temperature compensation. Optional board for recorder outputs 4-20mA possible. Integrated in a separate electronic control cabinet for wall mounting. The following functions/operating modes are executed and displayed:
• Stand-by
• Production
• Rinse after production
• Flushing interval
• Maintenance
Adaptable options through programmable configuration that can be stored in a memory.

Properties
Menu-guided programming in the 2-line display
• Language selection for English, French, Spanish, Italian or Dutch
• Adaptation to user-specific requirements through programmable options
• Easy handling and control through the use of symbols on the control buttons
• Universally applicable even for larger reverse osmosis systems
• Production can be controlled via manual or level switch
• Maintenance interval display programmable via code
• Service number can be shown in the display
• Status display can be called up via info key for the following conditions: Current status for inputs and outputs, service telephone number, software version, programming status, type of fault messages, Interval rinsing with current time interval, manual rinsing with time specification, conductivity measuring probe, cell constants
• Display of the current permeate and pure water conductivity with indication of the desalination rate in a large green LED display.
• Connection of optional board for recorder outputs 4-20mA
• Inputs for : Production stop, storage tank full/empty, overpressure, raw water shortage, motor protection switch, alarm reset, temperature sensor (optional), concentrate monitor
• Integrated conductivity meter with measuring range switchover
• Cell constants adjustable from for measurement of conductivities 0.1- 100000μS/cm
• Cell constants programmable from 0.01-10.00cm
• Manual and automatic temperature compensation
• Extension of conductivity measurement by dual function display
• Thermoswitch for pressure pump with fault signal available as option
• Outputs for : Pressure pump (contactor), input solenoid valve, flush valve, permeate valve, fault signal contact
• Insensitive to mains failures, as all programme functions are stored without battery.
• Large microprocessor memory capacity with "watchdog" against illegal "Operation Code and frequency monitoring
• Manufacture of the control unit in compliance with the EMC standard by means of galvanic isolation between microprocessor and input and output circuits, plus extra built-in filter
• Available input/output voltages (input/output) 24/24V 115/115V 230/230V

System design pure water tank
Storage tanks made of black PE for storing pure water from reverse osmosis systems. Closed and opaque design, angular, incl. 200 mm manhole for cleaning. The tank is completely piped and available with optional additional equipment. Incl. level control with min./max. control for fully automatic storage.
Scope of delivery:
• CO2 absorber, tank ventilation and sterile overflow
o Nominal volume: approx. 200 litres
o Material: PE black
o Inlet and overflow connection: R ¾".
o Connection outlet: R 1 ¼"

System design Pressure boosting
The PST 2500 PC pump station is a self-priming, horizontal, single-stage centrifugal pump with built-in ejector. The squirrel-cage motor and the use of a mechanical shaft seal make the unit maintenance-free and insensitive to faults. Long service life due to the use of stainless steel for all highly stressed parts, such as impeller and housing. In combination with the automatic pressure control, the unit becomes a complete supply station.
Single stage centrifugal pump
Automatic pressure control
• Type: PST 2500 PC
• Pumping medium: water
• Actual flow rate 3.4 m³/h
• At actual delivery head: 22 m
• Switch-on pressure Pressure control: 2.2 bar
• Material impeller and casing: stainless steel AISI 304
• Ambient temperature: max. 40°C
• Electrical connection: 230 V / 50 Hz
• Power consumption 850 W
• Dimensions incl. pressure control approx. W 206 x D 364 x H 500 mm
• Connection inlet d25 grommet
• Connection outlet R ¾"
• Order no. 16551200

Technical data
for connection to softened or hardness-stabilised drinking water in accordance with the German Drinking Water Ordinance.
• Blocking index: max. 3
• Salt content: max. 2,000 mg/l
• Chlorine concentration: < 0.01 mg/l
• Manganese content: < 0.05 mg/l
• Iron content: < 0.05 mg/l
• CO2 content: max. 15 mg/l
• SiO2 content: max. 0.4 mg/l
• pH range: 4 to 11

Pure water values
• RO capacity ( at 10°C ): 100 l/h
• RO membrane retention rate: > 99 % salts, germs and bacteria
• WCF rate adjustable up to 75
• Output EDI ( at 10°C ): 50-80 l/h
• Membrane retention rate RO: > 99 % salts, germs and bacteria
• Residual conductivity ED: 0.06 to 1 μS/cm*
• Type. Residual conductivity ED: 0.1 μS/cm*
• TOC value ED: < 30 ppb
• Silicate and germ reduction ED: > 99 %*
• WCF rate RO/ED adjustable: up to 75/90

Connection values
• Ambient temperature: 5 - 40°C
• Water temperature: 5 - 35°C
• Raw water pressure RO: 2 to 6 bar
• Working pressure RO: max. 14 bar
• Working pressure ED: 1 to 4 bar
• Clean water back pressure: max. 0 to 1 bar
• Supply voltage: 230 volts / 50 Hz
• Connected load: 1.5 kW
• Connection inlet:DN 20
• Connection outlet: DN 20
• Brine connection: DN 10
• Dimensions (WxDxH): 1020 x 600 x 1850 mm
• Weight approx.: 270 kg
• Order no. 17600080

The compact for H2O pure type ASTM II + DIN 285
RO ED ready mini is the system of choice when pure water is needed for the complete laboratory supply and space is limited. The system meets international water standards such as ASTM, ISO 3696, CLSI, DIN 285 and is economically maximised by the combination with the continuously self-regenerating electro-deionisation. In addition, the system holds 50 litres of pure water in a 50l storage tank with optional recirculation module for withdrawal. A frequency-controlled pressure and ring line pump can be used to supply downstream end devices and/or ring line systems. Mobile on castors, the system can be
integrated in a 90 cm laboratory base cabinet to save space. The RO ED ready mini system is predestined for the supply of autoclaves or dishwashers and ultrapure water systems in laboratory and medical technology.
Features
• All-in-one unit - completely pre-rolled and ready for connection
• Space-saving integration in a 90' base cabinet
• Economical ultrapure water quality ASTM II + DIN 285
• Continuous residual desalination by means of electro-deionisation
• 50 l pure water tank with optional recirculation module
• Clear control with graphic display
• Leakage sensor as standard
• Frequency-controlled pressure and ring line pump

System design - as standard
• Mobile T-frame on castors to accommodate all system components made of PE. With drip tray over the entire surface - accumulation edge 4 cm.
• Pre-treatment unit - pore size 5 μm with activated carbon to protect the membranes from particles and chlorine
• Wide range power supply with automatic voltage adjustment to 48 V enables international use with only one power supply
• Low-noise LongLife RO pressure pump (< 40dB) with automatic rinsing cycle to flush deposits from the membranes.
• HighPerformance reverse osmosis modules for the retention of inorganic and organic ingredients - extremely powerful
• Electro-deionisation module for continuous and economical resin regeneration without the addition of chemicals
• Pure water tank with a volume of 50 l made of black PE and conical bottom drain for complete emptying of residues
• CO2 absorber, sterile tank ventilation filter and sterile tank overflow protect against contamination by airborne germs and carbon dioxide
• Quality flushing valve for complete disinfection of all parts in contact with the media as well as quality flushing in interval mode
• Multilingual menu navigation for controlling and monitoring all operating and performance parameters as graphic display
• Frequency-controlled pressure and ring line pump with pressure sensor, switch box, 2 l pressure compensation vessel for supplying downstream terminal devices - 1 m³h/ at 4 bar

Optionally available:
• Recirculation module for complete tank recirculation and connection of external ring line systems - consisting of solenoid valve, timer and pressure maintenance
• UV disinfection unit as immersion tube system for the clean water tank Output 16 W, wavelength 254 nm, with ballast unit

Microprocessor control
• Multilingual microprocessor control with graphic display and colour change green/red on error message
• Individual setting options for conductivity display in MΩxcm or μS/cm as well as language switchover German/English
• Multi-stage conductivity & temperature monitoring for permeate & pure water, temperature-compensated with infinitely variable limit value setting
• USP-compliant and highly precise thanks to automatic adjustment before each measurement with integrated reference resistor and temperature compensation that can be switched off
• Continuous monitoring of the UV unit and leakage monitoring with error display and automatic safety shutdown of the water supply

Feed water requirements
softened drinking water according to DIN 2000
• Feed water temperature: +2°C to 35
• Feed water pressure: 2 to 6 bar
• Manganese and iron content: < 0.05 mg/l
• Chlorine content: < 0.1 mg/l
• Blocking index (SDI): max. 3

Pure water values type II
• Pure water conductivity*: 10-1 MΩxcm - 0.1 - 1 μS/cm
• Silicate retention* : > 99
• Pure water output at 15°C: 20 l/h
• Typical applications: Laboratory water supply type II / DIN 285; Supply of autoclaves and laboratory dishwashers
*in dependence of feed water quality and CO2

Technical data
• Ambient temperature: +2 to 35°C
• Supply voltage: 230 Volt / 50-60 Hz
• Total connected load: 1.1 kW
• Connection size: R ¾"
• Dimensions (WxDxH): 800 x 600 x 800 mm
