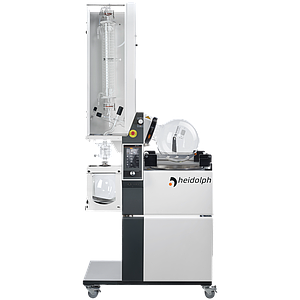

Heidolph Hei-VAP Industrial B rotary evaporators


% Heidolph Hei-VAP Industrial B - glassware set A1C • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware A1C - Achieving very high rates of distillation - especially during automated processes Glassware for very high rates of distillation. Also suitable for liquids with a boiling point up to 120 °C. Recommended for continuous evaporation in combination with the automatic module Hei-VOLUME Distimatic Pro. Includes: • A double condenser in series (for descending and ascending condensation) – condensation surface of 1.2 m² • An expansion vessel • An evaporation flask of 20 liters • two receiving flasks of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set A1 Picture similar • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware A1 • Glassware for very high rates of distillation. Also suitable for liquids with a boiling point up to 120 °C. Recommended for continuous evaporation in combination with the automatic module Hei-VOLUME Distimatic Pro. Includes: • A double condenser in series (for descending and ascending condensation) – condensation surface of 1.2 m² • An expansion vessel • An evaporation flask of 20 liters • A receiving flask of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set KC • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m²	% Heidolph Hei-VAP Industrial B - glassware set K • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m²
% Heidolph Hei-VAP Industrial B - glassware set A2C • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware A2C - Achieving very high rates of distillation - especially for foaming liquids Glassware for very high rates of distillation and excellent separation performance. For liquids with a boiling point up to 100 °C and/or foaming liquids. For distillation of most solvents including acetone, hexane, ethanol and water. Includes: A double condenser in series (for descending and ascending condensation) – condensation surface of 1.2 m² • An expansion vessel as foam brake • An evaporation flask of 20 liters • two receiving flasks of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set A2 • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware A2 - Achieving very high rates of distillation - especially for foaming liquids Glassware for very high rates of distillation and excellent separation performance. For liquids with a boiling point up to 100 °C and/or foaming liquids. For distillation of most solvents including acetone, hexane, ethanol and water. Includes: • A double condenser in series (for descending and ascending condensation) – condensation surface of 1.2 m² • An expansion vessel as foam brake • An evaporation flask of 20 liters • A receiving flask of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set AC • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware AC - Distill with flexibility – even when processing splashing and foaming substances. Flexible glassware with excellent separation performance. Suitable for liquids with a boiling point up to 100 °C and/or foaming liquids. Includes: • A single condenser • An expansion vessel • An evaporation flask of 20 liters • two receiving flasks of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set A Picture similar • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware A - Flexible glassware with excellent separation performance. Suitable for liquids with a boiling point up to 100 °C and/or foaming liquids. Includes: • 1 pc single condenser • 1 pc expansion vessel • 1 pc evaporation flask of 20 liters • 1 pc receiving flask of 10 liters
% Heidolph Hei-VAP Industrial B - glassware set RC Shorty • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware Shorty RC - For applications with limited mounting height Glassware similar to glassware R but with a shorter single condenser (32 cm less). To use when the mounting height is limited like for example under fume hoods or in confined conditions. Includes: • A single condenser for ascending condensation - condensation surface of 0.6 m² • An evaporation flask of 20 liters • two receiving flasks of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set R Shorty • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware Shorty R - For applications with limited mounting height Glassware similar to glassware R but with a shorter single condenser (32 cm less). To use when the mounting height is limited like for example under fume hoods or in confined conditions. Includes: • A single condenser for ascending condensation - condensation surface of 0.6 m² • An evaporation flask of 20 liters • A receiving flask of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set RC Picture similar • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware RC • Glassware only suitable for high-boiling media such as xylene, DMF or DMSO and reflux distillation Includes: • A single condenser for ascending condensation - condensation surface of 0.6 m² • A shut-off valve for operating the rotary evaporator as a reflux reactor • An evaporation flask of 20 liters • Two receiving flasks of 10 liters	% Heidolph Hei-VAP Industrial B - glassware set R • Universal heating bath accommodates water or other bath fluids allowing for temperature settings up to 180 °C • Receiver cassettes protect against threat of glassware breakage • Comes as standard with integrated refill water system, spillover prevention and a release valve at the bottom • Optional Base Cart is fully-maneuverable with removable panels for storage of vacuum pump, glassware, solvents or accessories • Certification according to GMP available for this model: validation for installation (IQ) and operating qualification (OQ) • Large touch screen control panel with illuminated displays for all process parameters, programmable ramps Features identical specifications as the Hei-VAP Industrial, but for limited budgets and comes without these safety aspects: • Metal frame and safety glass guard hood covering the bath • High-impact PMMA door covering the glassware assembly • High-impact PMMA latching doors which cover the receiving flask cassettes Programs for your process control • SETpressure Program for solvent separations o This program holds a set vacuum constant and uses a hysteresis o Optionally, the process can be predefined via programmable ramps • AUTOaccurate Supports very precise automatic pressure control for solvent evaporation and separations. o This program identifies multiple boiling points automatically by reducing vacuum. Technical Data • Lift: motor lift • Rotation speed range: 6 – 160 rpm • Temp. range heating bath: 20 – 180 °C • Bath temperature setting: digital • Temperature accuracy: ±1 °C • Heating capacity: 4,000 W • Overheat cut-off protection: yes • Display: 7" Touchpanel • Integrated vacuum controller: yes • Timer: yes • Vacuum program SETpressure: yes • Vacuum program AUTOaccurate requires AUTOaccurate sensor: yes • Supply Power: 4,600 W • Protection class DIN EN 60529: IP 20 • Max. condensing surface: 1.2 m² Glassware R - Glassware only suitable for high-boiling media such as xylene, DMF or DMSO and reflux distillation Includes: • A single condenser for ascending condensation - condensation surface of 0.6 m² • A shut-off valve for operating the rotary evaporator as a reflux reactor • An evaporation flask of 20 liters • A receiving flask of 10 liters
