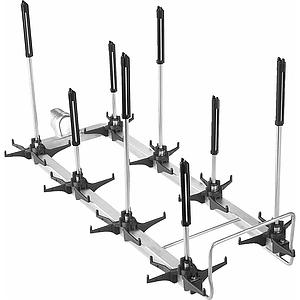

For optimum loading of laboratory glassware – can be equipped with 8 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Module w/o injector nozzles – equipped based on individual needs
• For up to 8 injector nozzles . Particularly suitable for nozzle diameters of 6 mm, e.g. A 840 or A 841, other diameters are possible depending on the application.
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 118 mm across the width, 118 mm across the depth

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

For optimum loading of laboratory glassware – can be equipped with 8 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Equipped with 4 A 840 nozzles and 4 A 841 nozzles
Size of A 840 injector nozzle: Ø 6 mm, height 130 mm
Size of A 841 injector nozzle: Ø 6 mm, height 210 mm
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 118 mm across the width, 118 mm across the depth

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

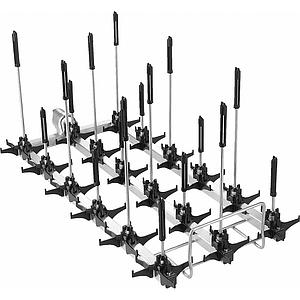

For optimum loading of laboratory glassware – can be equipped with 18 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Module w/o injector nozzles – equipped based on individual needs
• For up to 18 injector nozzles. (Particularly suitable for nozzle diameters of 4 mm, e.g. A 842 or A 843; other diameters are possible depending on the application.)
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 157 mm across the width, 78 mm across the depth

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

For optimum loading of laboratory glassware – can be equipped with 18 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Equipped with 9 A 842 nozzles and 9 A 843 nozzles
Size of A 842 injector nozzle: Ø 4 mm, height 90 mm
Size of A 843 injector nozzle: Ø 4 mm, height 185 mm
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 78 mm across the width, 157 mm across the depth

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

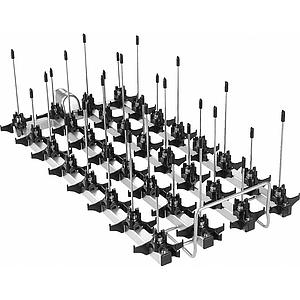

For optimum loading of laboratory glassware – can be equipped with 32 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Module w/o injector nozzles – equipped based on individual needs
• For up to 32 injector nozzles (Particularly suitable for nozzle diameters of 2.5 mm, e.g. A 844 or A 845; other diameters are possible depending on the application.)
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 60 mm across the width, 57 mm across the depth

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

For optimum loading of laboratory glassware – can be equipped with 32 nozzles.
• Area of application: reprocessing laboratory glassware
• Suitable for lab. glassware incl. Erlenmeyer and round flasks.
• Equipped with 16 A 844 nozzles and 16 A 845 nozzles
• Part of the EasyLoad system. The EasyLoad system makes reprocessing laboratory glassware considerably faster, simpler and more reliable. The biggest benefit afforded by the new system is that load items can be positioned over nozzles both more simply and faster as height adjustment of the holders is no longer necessary thanks to the smart combination of nozzles and holding frames. This makes correct positioning extremely easy.
• Nozzle spacing 60 mm across the width, 57 mm across the depth

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

For the optimum loading of up to 98 vials.
• Area of application: reprocessing pipettes/vials
• Suitable for 98 centrifuge tubes, phials, test tubes, for example
• The loading heights differ depending on the positioning
Loading height:
Loading height in lower basket without upper basket 428 mm, in lower basket with upper basket 172 mm, in upper basket 172 mm.

It can be used in the PG 8583 and PG 8583 CD, PG 8593 devices in the A 100 upper and A 150 lower basket.

For reprocessing large-volume laboratory glassware.
• Area of application: reprocessing laboratory glassware
• Laboratory flasks, up to 10 l
• Round flasks, up to 6 l
• Erlenmeyer flasks, up to 5 l
• Measuring flasks, up to 5 l
• Can be equipped with nozzles & holders based on individual needs. (The maximum diameter of the load depends on the number of nozzles used. Depending on the load, the following nozzles are required: A 846, A 847, A 848)
• Equipped with 5 injector positions

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
