ISF1-Z incubator shaker - the perfect solution for shaken cultivation processes. The incubator shaker is applicable for microbial, plant, human and animal cell cultures.
• Hygienic design according to DIN EN ISO 14159
• Improved direct drive: stronger, higher shaking frequencies, very long lasting
Includes all features of the basic model plus:
• Uses long-lasting Peltier elements for precise heating, cooling and humidity control
• Eco-friendly concept: no coolants or compressors requires

For the optimum loading of injector modules or inserts.
• Area of application: reprocessing pipettes/vials, laboratory glassware, butyrometers, measuring cylinders
• Lower basket with two module connections
• for holding up to 2 injector modules or inserts
• Automatic closing of the connections when not in use
• Clearances: width 494, length 440 mm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.

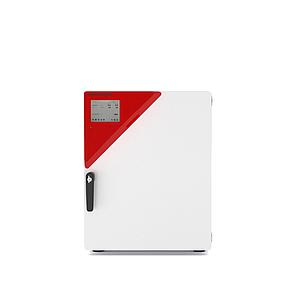

The proven specialist for reliable ICH stability tests in the pharmaceutical industry: the KBF masters all long-term tests, accelerated tests and stress tests. It fulfills all important ICH requirements, from precision to programming and documentation. With flexible water supply options for all installation locations. In addition, the new KBF consumes up to 40 % less energy than its predecessor. With optional light modules, the KBF can be converted into an ICH photostability chamber and a plant growth chamber.

Product features

• Temperature range: 0°C to +70°C
• Humidity range: 10% to 80% RH
• Proven APT.line™ preheating chamber technology
• Up to 40% lower energy consumption compared to the previous model
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with climate-neutral R-600a refrigerant
• Door heating to prevent condensation
• Adjustable fan speed
• Humidity regulation with capacitive humidity sensor and responsive steam humidification
• Housing design with HIT technology
• Stainless-steel inner chamber
• Inner doors made of metal oxide-coated safety glass
• Two racks made of stainless steel
• Large access port with silicone plug
• Floor-standing units featuring robust twin casters with brakes at the front
• Stackable tabletop units with a volume of up to 130 liters
• Intuitive touchscreen controller with time-segment and real-time programming
• Ergonomically adjustable control terminal (for units with a volume of 470 liters and above)
• Signal triangle with light-up status display (for units with a volume of 470 liters and above)
• Internal data logger, measured values can be read out in open format via USB Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB
• BINDER Multi Management Software APT-COM™ basic edition
• Optional light modules for ICH photostability testing (for models 260, 470, 720)
• Optional LED light modules for plant growth (for models from 260)

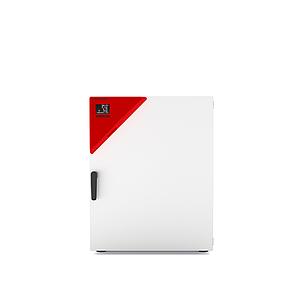

The powerful virtuoso in cooling incubators for microorganisms: KB units are able to incubate with exceptional precision even when fully loaded, feature a hot-air disinfection routine, and can be programmed for weekend operation with ease. The new KB unit consumes as much as 40% less energy than the previous model.

IMPORTANT FEATURES

• Temperature range: 0°C to +70°C
• Proven APT.line™ preheating chamber technology
• Up to 40% lower energy consumption compared to the previous model
• Energy-efficient cooling with modern inverter cooling unit
• Cooling with climate-neutral R-600a refrigerant
• Door heating to prevent condensation
• Housing design with HIT technology
• Interior made completely of stainless steel
• Inner doors made of metal oxide-coated safety glass
• Two racks made of stainless steel
• Large access port with silicone plug
• Floor-standing units featuring robust twin casters with brakes at the front
• Stackable tabletop units with a volume of up to 130 liters
• Simple programming of a second set temperature value
• Internal data logger, measured values can be read out in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB

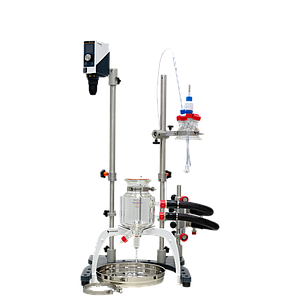

In order to provide you with the perfect end-to-end solution for powerful stirring and the simplest operation in the laboratory, we have added packages to the Hei-TORQUE product group.Each package contains a telescopic stand and a suitable clamp for easy use on lab tables.

The package includes:
• Hei-TORQUE Ultimate 200 overhead stirrer
Speed ​​range (rpm): 10 - 2000
Max. torque (Ncm): 200
Volume H2O max. (L): 50
Viscosity up to (mPa s): 100000
• Telescope stand
• Clamp

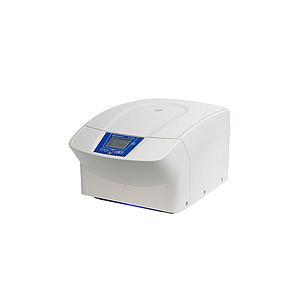

The Sigma 2-7 compact benchtop centrifuge arose from the experiences and desires of our customers. It combines advanced technology with high capacity and sets standards for ergonomic operation and quiet running.

The maximum RCF of more than 2,500 x g is suitable for many application areas in clinical diagnostics, veterinary medicine, pharmaceutics, environmental analysis and industrial production, as well as universities and research facilities.

What makes the Sigma 2‑7 benchtop centrifuge so attractive?
The Sigma 2‑7 scores with innovative features. One highlight is the blue LED running indicator, which enables operators to see from a great distance whether the run has ended. Other unique features are the 10 program storage locations (unequalled in its class) and the optional programmable centrifuge standstill and start times. This delayed start feature has been specifically developed for working with blood collection tubes in clinical in vitro diagnostics (IVD). The necessary clotting time can be preset on the device to help improve work processes.

The benchtop centrifuge is available with numerous swing-out and fixed-angle rotors, along with various buckets and adapters. The extensive range of accessories can accommodate tubes and flasks from 1.5 ml to 100 ml as well as microtiter and deepwell plates.

The Sigma 2‑7 is also available as an IVD model.

Product options
• IVD
• Clinic and cell culture packages

Applications: Hospitals, Veterinary clinics, Food labs, Universities & colleges, Pharmaceutical labs, Doctors in private practice, Cell culture labs

The compact Sigma 1‑14K centrifuge fits in every lab and fulfils the most stringent technical requirements. Its strong performance and large range of rotors are unique:
Two fixed-angle rotors provide a maximum capacity of 24 x 1.5/2.0 ml. Thanks to rotors for PCR strips, microhaematocrit capillary tubes and filter tubes, the Sigma 1‑14K is an all-round laboratory centrifuge suitable for a wide variety of applications. It is popular for molecular biology applications such as DNA, RNA and protein isolation, clinical chemistry, and in research labs and food labs, universities, and the pharmaceutical industry.

What makes the Sigma 1‑14K mini centrifuge so attractive?
The handy Sigma 1‑14K mini centrifuge combines effective performance with reliability. It is pleasantly quiet even at maximum speed, has wonderfully short braking times, is easy to use, and can be closed effortlessly thanks to a motorised lid lock. Customers also appreciate the price/performance ratio.

Applications: hospitals, infant stations, Veterinary clinics, Food labs, universities & colleges, pharmaceutical labs, cell culture labs

The Sigma 1‑14K is also available as the Sigma 1‑14 unrefrigerated centrifuge.

Laboratory refrigerators and freezers are expected to provide the highest levels of safety and reliability. Precise electronic control, fan-assisted cooling, and highly efficient insulation result in outstanding energy efficiency, ensuring low operating costs and environmental protection. Advanced components and precise regulation ensure optimal storage of materials.


Product Features

Easy Operation
User-friendly solutions for daily use

• Built-in handle along the full height of the door
• Monochrome electronic control panel with 3 touch buttons
• Easy-to-clean stainless steel interior lining
• The door stays open at angles greater than 90°
• Flush-mounted interior ceiling LED lighting

Compliance and Documentation
Built-in safety features to protect sensitive materials

• Temperature setting (calibration)
• Logging of minimum/maximum temperature values
The recorded minimum and maximum internal temperatures are saved and can be easily read from the display.
• Connectivity available as an upgrade (LAN or WiFi for BMS or SmartMonitoring systems)
• Standard compliance: IEC 60068-3, IEC 61010-2-011

Safety and Reliability
Reliable storage thanks to consistent cooling performance, even in extreme ambient temperature conditions

• Temperature stability up to: ±3 °C (refrigerator) / ±5 °C (freezer)
• Alarm relay
Alarm transmission to the monitoring system ensures no deviations go unnoticed.
• The door automatically closes if opened at less than a 90° angle.
• Probe access opening: 10 mm in diameter
• Mechanical door lock
• Long lifespan

Technical Data

• Gross/net volume: 614/480 L
• External dimensions (W/D/H) mm: 697/867/2135
• Internal dimensions (W/D/H) mm: 489/638/1470
• Energy consumption/year: 178 kWh
• Ambient temperature: +10 °C to +35 °C
• Heat emission: 305 kJ/h
• Refrigerant: R 290
• Noise level: 60 dB(A)
• Frequency/voltage: 50 Hz / 220-240 V~
• Fan-assisted cooling system
• Automatic defrost
• Temperature range: -2 °C to +16 °C
• External casing/color: steel / white
• Interior lining: chrome-nickel steel (1.4301 / AISI 304)
• Door/Cover material: steel
• Network connectivity via SmartModule, available as an upgrade
• WLAN/LAN connection: optional
• Adjustable shelves: 4
• Shelf material: steel with plastic coating
• Usable shelf size (W/D) mm: 480 / 638 mm
• Shelf load capacity: 60 kg
• Castors with arrestor at the front, fixed castors at the rear
• Probe access: 1 x Ø 12 mm
• Door opening direction: right, reversible
• Gross/net weight: 148/130 kg

Each package contains a telescopic stand and a corresponding clamp to ideal, ergonomic use on laboratory benches. In addition to that, we offer you two accessory parts that are meant to increase your own safety at work: the stirrer shaft guard and the beaker holder.

Included package components:
• Hei-TORQUE Ultimate 200 overhead stirrer
Speed range (rpm): 10 - 2000
Max. torque (Ncm): 200
Volume H2O max. (L): 50
Viscosity up to (mPa s): 100000
• Telescopic stand
• Clamp
• Shaft guard
• Beaker holder

FVG – VERTICAL LAB STERILIZER
A COMPACT AND ERGONOMIC CHOICE.
• Applications: Bio-Pharmaceutical, Microbiology
• Loads: Sealed & unseald containers, Machine parts, Tools, Culture Media, Glassware
• Processes: Sterilization
• Useful chamber capacity: 50, 75,140 liters
FVG Vertical Lab Sterilizer combines excellent performances with overall high quality materials, simplicity of use and optimal consumption.
All FVG series autoclaves are equipped with a built-in steam generator with automatic water feed pump. These autoclaves can treat a wide range of laboratory goods with reliable sterilization technology, such as: glassware and plastic articles, unwrapped instruments, machine parts and components, porous goods, culture media and liquids in open small size containers, laboratory regular waste in open bags.
The FVG series sterilizers are suitable for the sterilization and decontamination in many different laboratory sectors as:
Private and public microbiology labs.
High schools and universities.
Research institutes.
Life science and biotech labs.
Please, click on the image “recommended kit” to check out all possible configurations referred to FVG series.
DESIGN AND TECHNICAL FEATURES
FVG series can be provided in three different chamber useful volumes: 50 liters (FVG1) – 75 liters (FVG2) – 140 liters (FVG3).
Sterilization chamber and lid are made of 316L stainless steel, with mirror polished sanitary finishing. FVG operates at high-pressure (3,5 bar g) and temperature (140°C).
Exclusive horizontal swiveling lid with pneumatic gasket “rotate-and-seal”, for improved user safety. FVG is equipped with a heat recovering system for water preheating to steam generator, assuring utilities cost saving.
FVG has TSC 09 microprocessor control system with graphic color LCD display and an exclusive dual sensor system, by pressure and temperature, for double regulation and control of the sterilization process.
KEY BENEFITS
• Ergonomically designed chamber for maximizing loadable capacity.
• Quick connections to all utilities for easy handling and installation.
• Timed free steaming with pulses for effective air removal.
• 14 free configurable automatic programs.
• Multilevel passwords protected key-users access to ensure process safety.
• Set of four castors for easy moving and installation in lab room.
• GLP compliance
COMPLIANT TO
• PED Directive 2014/68/UE – Pressure equipment
• Machine Directive Macchine 2006/42/EC
• EMC Directive 2014/35/UE
• LVD Directive 2006/95/UE

Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• With lift door (LVT)
• Solid state relays provide for lownoise operation
• Controller C550 (10 programs with each 20 segments)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Port for thermocouple in the rear wall or in the furnace door

Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) ../12 models, when you need a higher application temperature.

Standard Equipment
• Heating from two sides
• Heating elements on support tubes ensure free heat radiation and a long service life
• Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• With lift door (LT)
• Adjustable air inlet in the furnace door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• With Controller C550 (10 programs / 20 steps)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

We particularly recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.

Standard Equipment
• Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
• Muffle heated from four sides
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• With lift door (LT)
• Adjustable working air inlet in the door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Defined application within the constraints of the operating instructions
• With Controller C550

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automation gas supply system
• Port for thermocouple in the rear wall or in the furnace door

The muffle furnaces L 3/11 - LT 60/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability.

Standard Equipment
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type N (1100 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• With lift door (LT)
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Controller with touch operation B510 (5 programs with each 4 segments)
• Solid state relays provide for lownoise operation

Option
• Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

• Certifications: DIN 13277, IEC 61010-2-011, ISO 6, EN 60068-3
• Cooling system, refrigerator compartment: dynamic; defrosting method: automatic
• Cooling system, freezer compartment: dynamic; defrosting method: automatic (No Frost)
• Side wall material: steel
• Colour: white
• Door/Cover material: Insulated glass door, steel; door seal are replaceable. Door hinges are right reversible; antimicrobial handle with opening mechanism.
• Temperature display: exernal digital
• Malfunction: warning signal optical and acoustical
• Control unit: Touch & Swipe; temperature display: exernal digital
• Potential-free contact
• Power failure alarm: immediately upon power failure for min. 12h
• Data logger: intergrated, USB interface
• Connectivity solution: integrated, removable; Interface: WLAN/LAN
• Connectivity type: SmartModule
• Product sensor: integrated
• In the refrigerator section: 4 pcs 460x423 mm steel grid shelves with white protective coating; the height of the shelves can be adjusted by 35 mm; load capacity per shelf: max. 45 kg
• In the freezer section: 3 removable plastic drawers on glass shelves; load capacity per shelf: max. 40 kg
• Material of interior containers: Plastic white
• Exterior dimensions (H x W x D): 597x654x2044 mm
• Energy consumption per year: 449 kWh
• Refrigerant: R 600a

Space saving stackable incubator shaker
The Kuhner LT-X (Lab-Therm) incubator shaker has the same capabilities as the larger ISF1-X and ISF4-X models. The incubator shaker was specially developed to address the shaking needs of the biotechnology and pharmaceutical industries. The practical size of the LT-X means it will fit in any laboratory.
Performance characteristics
• Fits into any laboratory
• Used in biotech and pharmaceutical industries
• Accepts flasks up to 6 litres
• Two units can be stacked without the need for special kits or tools
• Humidity, CO2 and O2 control available
• Extra space
Exceptional chamber height means flasks up to 6 litres capacity can be accommodated. If using smaller flasks, there is sufficient head height to fit one or two stationary trays above the shaking table. It is also possible to stack two LT-X together without the need for special kits or tools.
• Functionality through direct drive
The maintenance-free direct drive guarantees long and economical performance from the LT-X. The shaking diameter can be changed at any time thanks to Kuhner’s unique direct drive system. The integrated drive is protected from spills and the all stainless steel interior has a drain at the back for any unwanted liquids. The chamber can be cleaned using chemicals or sterilized with optional UV lighting.
• Safety and quality
A door switch ensures the motor stops as soon as the door is opened. After closing the door properly, the motor restarts. The safety, reliability and quality of our shakers are of personal concern to everyone at Kuhner which is why all our machines are supplied with a 5 year warranty.
• Configuration
The LT-X can be equipped with options for CO2, O2,controlled humidity, LED photosynthesis, UV lighting and much more. It is now also possible to integrate measuring data from Kuhner shakers with your company’s own network using Kuhner Insight software together with the NET-60 interface.
Detailed technical data can be found in the product catalog.

Large incubator shaker with a minimal footprint and up to five independent shaker units
The Kuhner ISF4-X incubator shaker offers large shaking capacity with temperature, humidity and CO2 control all available. The shaker cabinet can incorporate four or even five independent shaking units which are height adjustable. The shaking diameter and speed of each unit can be individually selected. Standard diameters are 12.5, 25 and 50 mm. Other shaking diameters are possible.
Performance characteristics
• All stainless steel interior
• Large shaking capacity
• Easy access to contents
• Each shaking unit has its own direct drive
• Door heating, with controlled humidity
• Guaranteed quality
When designing the ISF4-X special emphasis was placed on reliability and durability. The high quality of Kuhner shaking machines is backed with a five year warranty.
• Safety and convenience
The large door opening of the ISF4-X allows easy access to the shake flasks inside. The doors are fitted with a safety switch to ensure shaking stops when the doors are opened.
The large windows allow a clear view of incubator’s contents. The entire ISF4-X chamber is made of stainless steel making sterilisation with chemicals possible.
• Energy saving operation
The highly efficient direct drive system means economic low power consumption and the cooling system also operates with energy efficiency.
• Electrical protection
Automatic supervision of the mains voltage protects the shaker and in the event of a voltage spike the unit disconnects from the mains. The machine resumes operation at the set values once power is restored.

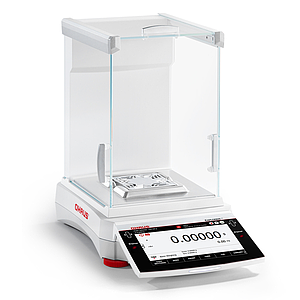

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three-level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Product features

• Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
• Display: 4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
• Operation: AC adapter (included)
• Communication: RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
• Construction: Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
• Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

Technical details

• Maximum Capacity: 82 g/120 g
• Readability: 0.00001 g; 0.0001 g
• Pan Size: 80 mm
• Internal Calibration: AutoCal™ - Automatic
• Draftshield: Included
• Dimensions: 9.05 in (354 mm x 340 mm x 230 mm)
• Legal for Trade: Not Applicable
• Auxiliary Display Model: Available as an Accessory
• Auto Door: Not Applicable
• Working Environment: 10°C – 30°C, 80%RH, non-condensing
• Net Weight: 5.1 kg
• In-Use Cover: Included
• Communication: USB; RS232 (Included); USB Host
• Power: AC Adapter (Included)
• Units of Measurement: Singapore Tael; Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce
• Display: Full-Color 4.3 in Touchscreen WQVGA
• Pan Construction: Stainless Steel
• Built-in Ionizer: No
• Stabilization Time: 8 s
• Repeatability, typical: 0.00002 g; 0.0001 g
• Minimum Weight (USP, 0.1%, typical): 20 mg
• Linearity ±: 0.1 mg

The latest Labculture® G4 (LB2 G4) Biosafety Cabinet with 100% exhaust airflow mechanism provides a high level of containment and user and product protection. LB2 G4 also has fail-safe system where in case of exhaust failure, the cabinet’s main fan automatically shuts down to ensure safety.

The new BSC with Centurion Touchscreen controller is NSF-certified, ergonomically designed, and work zone lighted with bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Features:

• Centurion Touchscreen Controller
Intuitive, comprehensive, and easy-to-understand
Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
Defined details of alarm types with clear instructions for proper intervention
Centered and angled down for easy reach & viewing
Selectable Quickstart mode for fast operation
• Dimmable LED
Adjustable work zone brightness
Ideal light intensity of 1200 lux
Saves energy and optimizes work comfort
• Ergonomic Sash
8” sash opening
Frameless, shatterproof, and UV-absorbing tempered glass
• Tray support beams and holder
Support beams for less vibration and holder for easy drain pan cleaning
• USB Port and Remote Modbus
USB port to access cabinet data log and BMS connectivity
Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
• Cabinet Construction
Stainless steel side walls with side capture zones and negative pressure to optimize containment
Single-piece work tray, spill retaining and easy to clean
• Green Product
Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
Extremely low energy consumption
• ULPA Filter
10x filtration efficiency compared to the HEPA filter
Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
Same 10 years filter life and replacement cost as HEPA filters
*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*>99.999% at MPPS, H14 as per EN 1822 EU
• Isocide™ Antimicrobial Powder Coating
Eliminates 99.9% of surface bacteria within 24 hours of exposure

As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. These devices provide extra powerful pressure and suction pumps and have an incredibly high heating output of 3 kW, enabling even more dynamic temperature control for external applications.

With a working temperature range of -50 ... +200 °C, the Refrigerated / heating circulator MAGIO MX-2500F delivers an outstanding cooling capacity of 2.57 kW at 20 °C despite its compact design. This cooling machine works with natural, environmentally-friendly refrigerant and was developed with a focus on energy efficiency. This means significant savings on the operating costs for numerous applications, which also means rapid amortization of the procurement cost. At the same time, the lower energy consumption positively contributes to climate protection.

High resolution TFT touch display
The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.

Product features

• USB connection
• Class III (FL) according to DIN 12876-1
• RS232 interface for online communication
• Integrated programmer
• Integrated external Pt100 connection
• Ethernet
• Analog interfaces (accessory)
• Ideal for demanding external applications
• Simple control of complex applications
• Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
• Continuously adjustable, extremely powerful pressure / suction pump
• Large, high-resolution TFT touch display with multilingual user interface
• Parts being in contact with the medium made of stainless steel
• Connections for solenoid valve
• Integrated pump connection M16×1
