Heidolph Titramax vibration platform shakers

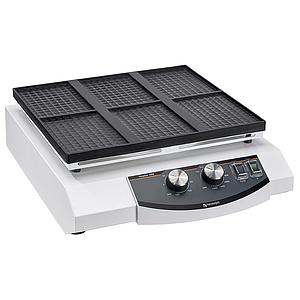

• The one with temperature-control
• The largest model of the Titramax series contains all the features of the Titramax 100: a shaking orbit of 1.5 mm, speeds of up to 1,350 rpm, and a timer.
• With a storage capacity of up to six multi-well plates, a higher number of samples can be processed. The option to integrate the Titramax 1000 into the modular incubation system also allows temperature-controlled processes to be carried out without problems.
• With this model, easy loading and removal of the plates can be carried out comfortably due to the recess and the spacings in the rubber mat.
• Technical Data
• Motion vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 1.5 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 290 x 258 mm
• Max. Load: 5 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 30

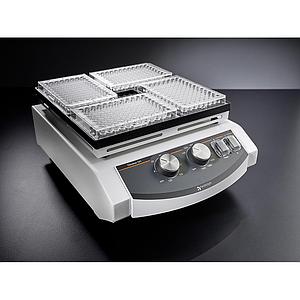

• The powerful with a 3 mm shaking orbit
• With a capacity of four multi-well plates, the Titramax 101 ensures more intensive mixing results. With a 3 mm orbit, this model is particularly suitable for processes in which solids must be distributed or dissolved in the cavities.
• The speed setting of 150-1,350 rpm guarantees a continuously variable adjustment. Use the integrated timer with a runtime of up to 120 minutes for defined processes. The shaker can of course also be used in continuous operation.
• Technical Data
• Motion vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 3 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 220 x 220 mm
• Max. Load: 2 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 30

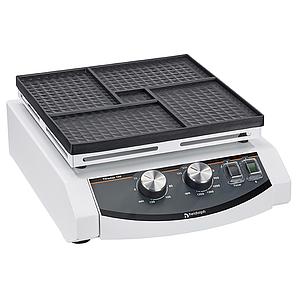

• The gentle with a 1.5 mm shaking orbit
• This shaker is particularly suitable for processes in which cell cultures must be kept in gentle motion.
• The nutrients are excellently distributed. This is guaranteed by the 1.5 mm shaker orbit and a speed range of 150-1,350 rpm.
• The integrated timer can be set for up to 120 minutes; an acoustic signal sounds when the interval has expired.
• Technical Data
• Motion: vibrating
• Rotation speed range: 150 - 1,350 rpm
• Operating Mode: timer or continous
• Orbit / Stroke: 1.5 mm
• Timer: Yes
• Power input: 31 W
• Platform size: 220 x 220 mm
• Max. Load: 2 kg
• Overheat protection: self-resetting
• Protection class DIN EN 60529: IP 30
