Upper and lower baskets

%

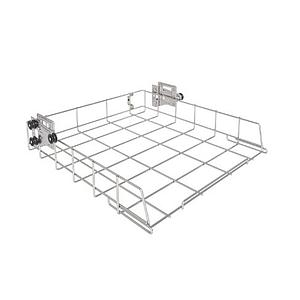

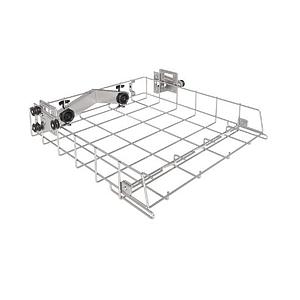

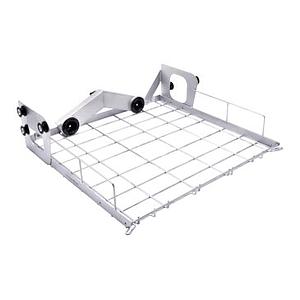

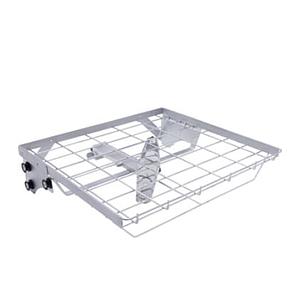

Miele A 100 upper basket
For the optimum loading of injector modules or inserts.
• Area of application: reprocessing pipettes/vials and laboratory glassware
• Upper basket with two module connections
• For holding up to 2 injector modules or inserts
• Automatic closing of the connections when not in use
• Loading height with module with plastic supports 190 mm
• Clearances: width 489, length 440 mm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
%

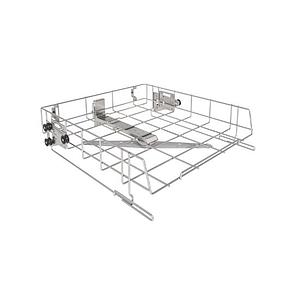

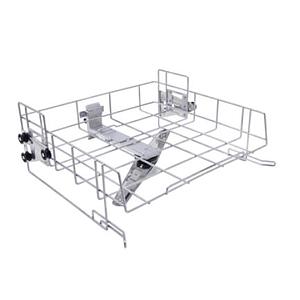

Miele A 101 upper basket
Height adjustable, for the optimum loading of inserts.
• Area of application: reprocessing laboratory glassware and different utensils
• Vertical clearance 160 +/- 30 mm, width 475 mm, depth 443 mm
• With integrated spray arm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
%

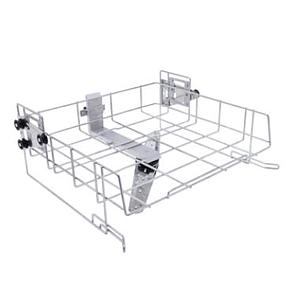

Miele A 102 upper basket
Height adjustable, for the optimum loading of inserts.
• Area of application: reprocessing laboratory glassware
• Vertical clearance 205 +/- 30 mm, width 475 mm, depth 443 mm
• With integrated spray arm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
%

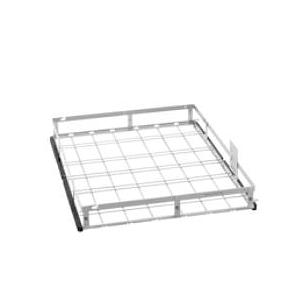

Miele A 103 upper basket
For the optimum loading of inserts.
• Area of application: reprocessing laboratory glassware, mesh trays and different utensils
• Vertical clearance: 95 mm, width 505 mm, depth 472 mm
• Particularly suitable for the reprocessing of DIN mesh trays
• Also suitable for further applications with low height items
• With integrated spray arm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
%

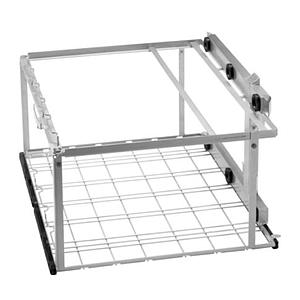

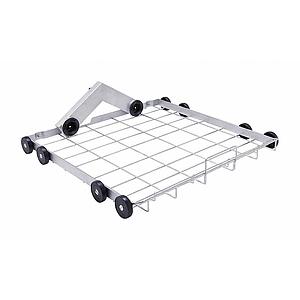

Miele A 150 lower basket
For the optimum loading of injector modules or inserts.
• Area of application: reprocessing pipettes/vials, laboratory glassware, butyrometers, measuring cylinders
• Lower basket with two module connections
• for holding up to 2 injector modules or inserts
• Automatic closing of the connections when not in use
• Clearances: width 494, length 440 mm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
%

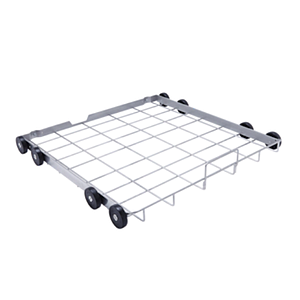

Miele A 151 lower basket
For holding standard DIN mesh trays as well as various inserts.
• Area of application: reprocessing laboratory glassware and different utensils
• Vertical clearance dependent on upper basket selected
Loading height in combination with:
A 100: Height 240 mm
A 101: Height 265 +/- 30 mm
A 102: Height 225 +/- 30 mm
A 103: Height 305 mm
Without upper basket: 495 mm
• Loading width: 490 mm, loading depth: 498 mm

Machine affiliation: Can be used in PG 8504, PG 8583, PG 8583 CD, PG 8593 devices.
%

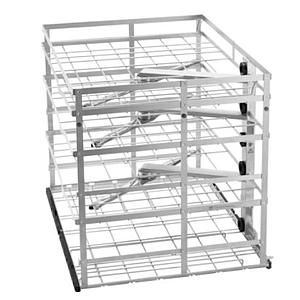

Miele A 202 mobile unit
For the optimum loading of 4 DIN mesh trays.
• Area of application: reprocessing OP instruments
• Suitable for 4 DIN mesh trays on 2 levels
• Insert frames: Removable for the reprocessing of tall wash items
• 6 additional connection options via Luer lock connection
• With integrated spray arm
• Loading volumes for the different levels differ from each other
Loading area
Loading dimensions:
Level 1: With holding frames H 95, W 516, D 498 mm, without holding frames H 135, W 490, D 498 mm
Level 2: H 135, W 516, D 498 mm

Machine affiliation: Can be used in PG 8583, PG 8583 CD, PG 8593 devices.
