Drying and heating chamber

%
Nabertherm gloves, Tmax 650°C
Heat-resistant gloves for protection of the operator when loading or removing hot materials
%

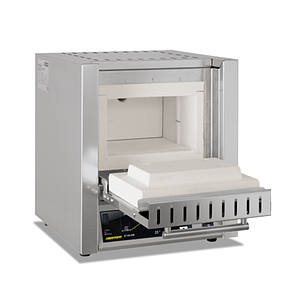

Nabertherm L 1/12/R7 muffle furnace
The muffle furnaces L have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability.

Standard Equipment
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type S (1200 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• With flap door (L)
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• R7 (1 program with 1 segment)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door
%
Nabertherm LVT 3/11/B510 ashing furnace
Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• With lift door (LVT)
• Solid state relays provide for lownoise operation
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Port for thermocouple in the rear wall or in the furnace door
%
Nabertherm LT 5/13/B510 muffle furnace with brick insulation
Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) ../12 models, when you need a higher application temperature.

Standard Equipment
• Heating from two sides
• Heating elements on support tubes ensure free heat radiation and a long service life
• Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• With lift door (LT)
• Adjustable air inlet in the furnace door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door
%
Nabertherm LT 9/11/SKM/B510 muffle furnace with embedded heating elements in the ceramic muffle
We particularly recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.

Standard Equipment
• Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
• Muffle heated from four sides
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• With lift door (LT)
• Adjustable working air inlet in the door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Defined application within the constraints of the operating instructions
• Controller with touch operation B510 (5 programs with each 4 segments)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automation gas supply system
• Port for thermocouple in the rear wall or in the furnace door

%

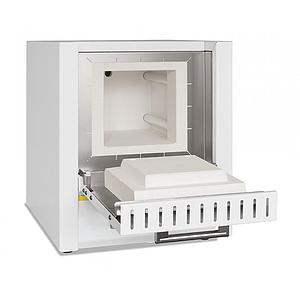

Nabertherm LE 1/11/R7 compact muffle furnace
With their convincing price/performance ratio and the fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Standard Equipment
• Heating from two sides from heating elements protected in quartz glass tubes
• Fast heating times
• Maintenance-friendly replacement of heating elements and insulation
• Housing coated in RAL 9003
• Solid state relays provide for lownoise operation
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Flap door which can also be used as a work platform
• Exhaust air outlet in rear wall
• Compact dimensions and light weight
• Controller mounted under the door to save space
• Controller R7 (adjustable for one temperature)
%
Nabertherm gloves, Tmax 700°C
Heat-resistant gloves for protection of the operator when loading or removing hot materials
%
Binder VDL 23 vacuum drying chambers for flammable solvents
BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe working thanks to ATEX-compliant safety concept
• Also option of modular complete system with vacuum pump and pump chamber
Important characteristics
• Temperature range: +9 °C above ambient temperature to +110 °C
• ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
• Intuitive touchscreen controller with graphical pressure and temperature display
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• Pressure control device for heating activated from < 100 mbar
• 2 aluminum expansion racks, can be custom-positioned
• Universal connection for ventilation with ambient air or inert gas
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window
• Computer interface: Ethernet
Optional equipment
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function
%
Binder VD 23 vacuum drying chamber
BINDER’s VD series vacuum drying chambers deliver impressive performance through their precise temperature control and gentle drying. The patented expansion rack technology from BINDER also optimizes heat transfer. The shelves can be repositioned for flexible placement and the interior of the chamber is easy to clean.
Benefits
• Fast, gentle drying
• Optimum heat transfer through large thermal conducting plates
• Safe work thanks to proven safety concept
• Also option of modular complete system with vacuum pump and pump chamber
• Important characteristics
• Temperature range: +9 °C above ambient temperature to +220 °C
• Controller with digital display of pressure and temperature
• Program-controlled drying monitoring with automatic ventilation at end of process
• Internal data logger, measured values can be read out in open format via USB
• 1 aluminum expansion rack, can be custom-positioned
• Inert gas connection
• Universal access port DN 16 - for the introduction of external measuring devices
• Shatterproof, spring-mounted safety glass panel
• Large viewing window with option of interior lighting
• Computer interface: Ethernet
• 2 relay outputs, 24 V DC (max. 0.4 A)
Optional equipment
• Touchscreen Controller - Graphical display of main process parameter
• Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
• Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
• Universal ventilation - Selection of different ventilation by air or inert gas
• Universal access port DN 40 - for the introduction of external measuring devices
• Multi Management Software APT-COM - Manage, record and document device parameters
• Services - extensive services ensure correct device function
%
Binder FD-S 56 drying and heating chambers with forced convection
The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
Benefits
• Easy handling
• Accurate temperature control
• Simple and ergonomic door opening
Important characteristics
• Temperature range: +10 °C above ambient temperature to +250 °C
• APT.line™ preheating chamber technology
• Forced convection
• Adjustable exhaust air flap
• Controller with timer function
• 1 chrome-plated rack, incl. shelf supports
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
%
Binder FED 56 drying and heating chambers with forced convection
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Benefits
• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to 300 °C
Important characteristics
• Temperature range: +10 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with LCD display and enhanced time functions
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks
• Units up to 115 liters are stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• Ethernet interface
• USB port for recording data
%
Binder FD 23 drying and heating chambers with forced convection
A BINDER FD series heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Benefits
• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
Important characteristics
• Temperature range: +5 °C above ambient temperature to +300 °C
• APT.line™ preheating chamber technology
• Forced convection
• Adjustable exhaust air flap
• Controller with timer functions
• 2 chrome-plated racks
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
%
Binder ED-S 56 drying and heating chambers with natural convection
The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
Benefits
• Easy handling
• Accurate temperature control
• Simple and ergonomic door opening
Important characteristics
• Temperature range: +7 °C above ambient temperature to +250 °C
• APT.line™ preheating chamber technology
• Natural convection
• Adjustable exhaust air flap
• Controller with timer function
• 1 chrome-plated rack, incl. shelf supports
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
%
Binder ED 23 drying and heating chambers with natural convection
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to +300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Benefits
• Uniform drying conditions thanks to APT.line™ technology
• Identical test conditions throughout the chamber interior independent of sample size and quantity
• Outstanding thermal insulation saves operation costs
Important characteristics
• Temperature range: +5 °C above ambient temperature to +300 °C
• APT.line™ preheating chamber technology
• Natural convection
• Adjustable exhaust air flap
• Controller with timer functions
• 2 chrome-plated racks
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
%
Nabertherm LVT 3/11/C550 ashing furnace
Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition, ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature uniformity.

Standard Equipment
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded, and easy to replace
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C)
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Suitable for many standardized ashing processes according to ISO, ASTM, EN, and DIN
• With lift door (LVT)
• Solid state relays provide for lownoise operation
• Controller C550 (10 programs with each 20 segments)

Option
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Port for thermocouple in the rear wall or in the furnace door
%
Nabertherm LT 5/13/C550 muffle furnace with brick insulation
Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) ../12 models, when you need a higher application temperature.

Standard Equipment
• Heating from two sides
• Heating elements on support tubes ensure free heat radiation and a long service life
• Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• With lift door (LT)
• Adjustable air inlet in the furnace door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• With Controller C550 (10 programs / 20 steps)

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door
%
Nabertherm LT 9/11/SKM/C550 muffle furnace with embedded heating elements in the ceramic muffle
We particularly recommend the muffle furnace L 9/11/SKM for heat treatment of aggressive substances. The furnace has a ceramic muffle with embedded heating from four sides. The muffle furnace thus combines a very good temperature uniformity with excellent protection of the heating elements from aggressive atmospheres. Another aspect is the smooth, nearly particle free muffle (furnace door made of fiber insulation), an important quality feature.

Standard Equipment
• Furnace chamber with embedded ceramic muffle, high resistance to aggressive gasses and vapours
• Muffle heated from four sides
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• With lift door (LT)
• Adjustable working air inlet in the door
• Exhaust air outlet in rear wall of furnace
• Solid state relays provide for lownoise operation
• Defined application within the constraints of the operating instructions
• With Controller C550

Option
• Chimney, chimney with fan or catalytic converter
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automation gas supply system
• Port for thermocouple in the rear wall or in the furnace door

%
Nabertherm LT 3/11/B510 muffle furnace
The muffle furnaces L 3/11 - LT 60/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability.

Standard Equipment
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type N (1100 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace
• With lift door (LT)
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Controller with touch operation B510 (5 programs with each 4 segments)
• Solid state relays provide for lownoise operation

Option
• Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door

%
Nabertherm LE 2/11/R7 compact muffle furnace
With their convincing price/performance ratio and the fast heat-up rates, these compact muffle furnaces are perfect for many applications in the laboratory. Quality features like the dual shell furnace housing of rust-free stainless steel, their compact, lightweight constructions, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Standard Equipment
• Heating from two sides from heating elements protected in quartz glass tubes
• Fast heating times
• Maintenance-friendly replacement of heating elements and insulation
• Housing coated in RAL 9003
• Solid state relays provide for lownoise operation
• Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
• Flap door which can also be used as a work platform
• Exhaust air outlet in rear wall
• Compact dimensions and light weight
• Controller mounted under the door to save space
• Controller R7 (adjustable for one temperature)
%
Nabertherm charging plate N 41/H
We recommend these accessories for applications up to 1100 °C to protect the furnace floor, especially if a charging cart is used.
• Tmax 1100 °C
• Three raised edges
• Heat-resistant alloy 314 (AISI)/(DIN material no. 1.4841)
• Outer dimensions in mm (WxDxH 340x540x30)
